Create an APEX Application

Introduction

In this lab, you learn to create an APEX application by importing data from a spreadsheet. APEX can declaratively build an app from a table that is created using a spreadsheet. Later, you learn to modify the pages and the theme of the application.

Note: The screenshots in this workshop are taken using Dark Mode in APEX 24.2

Estimated Time: 5 minutes

Watch the video below for a quick walk-through of the lab.

Objectives

In this lab, you will:

  • Create a new APEX application
  • Configure a Cards region
  • Customize the application theme using Theme Roller

Prerequisites

  • An Oracle APEX workspace

Task 1: Load the Highschool Data

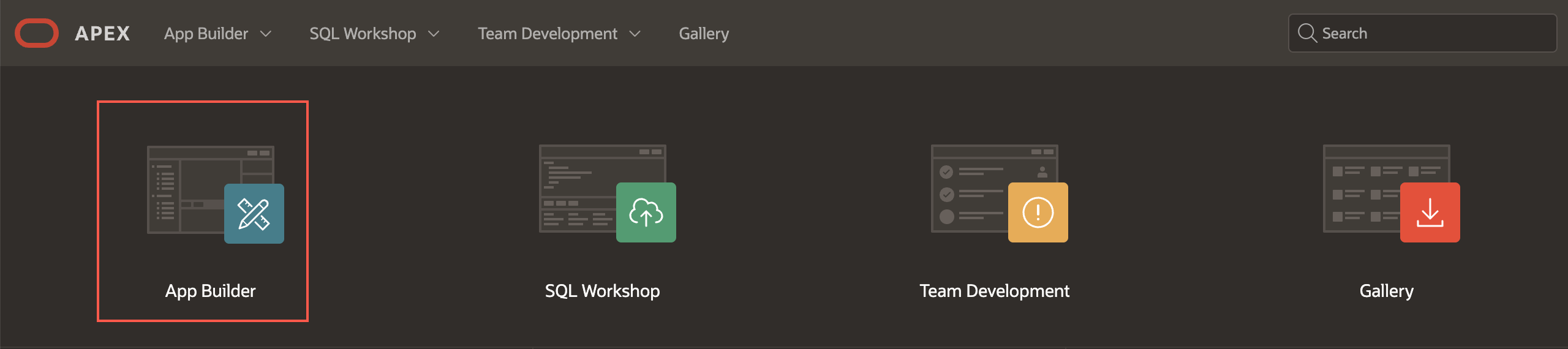

  1. From your APEX workspace home page, click App Builder.

    Image showing clicking an App Builder

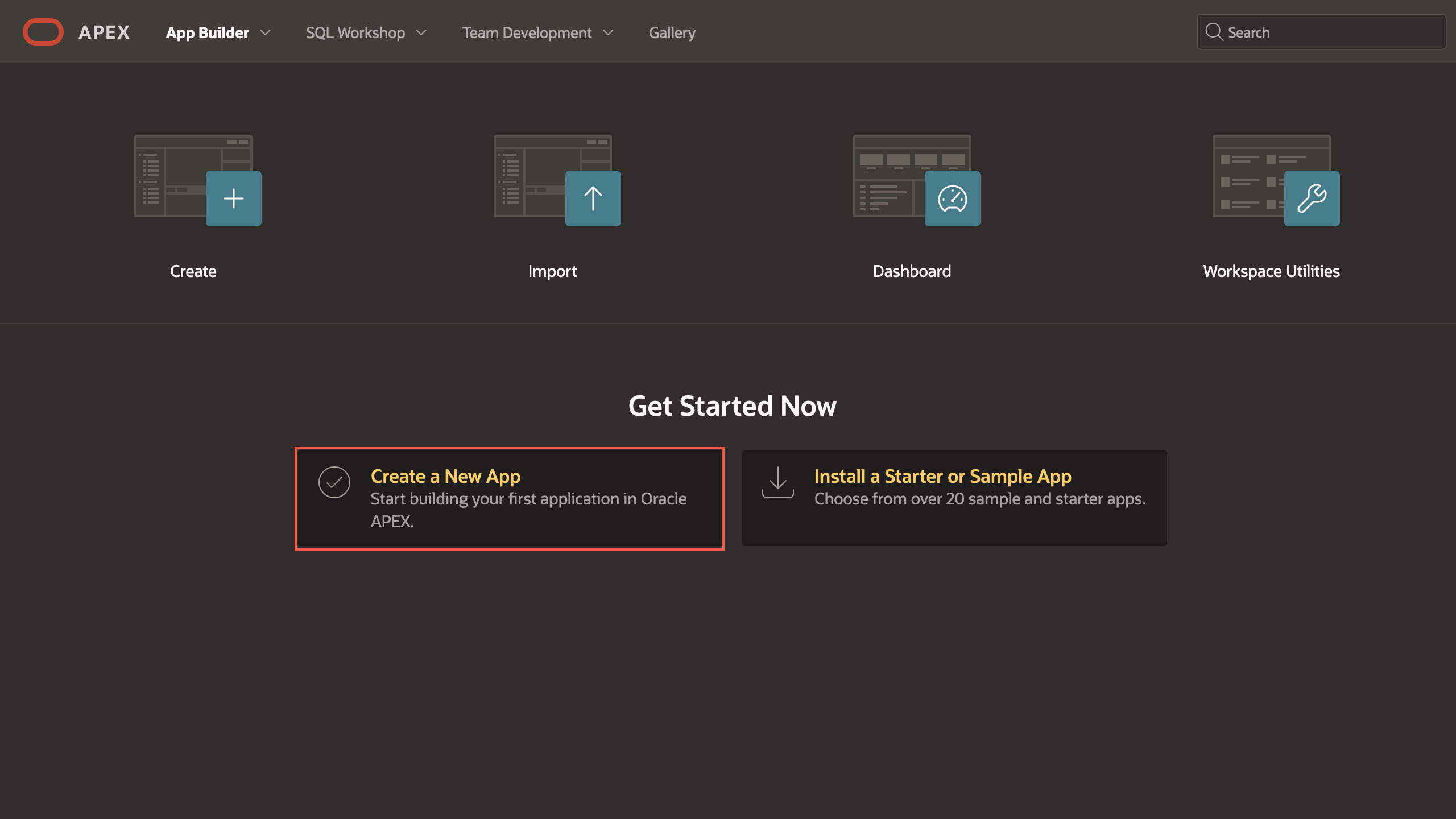

  2. Click Create a New App.

    Image showing Create a New App option

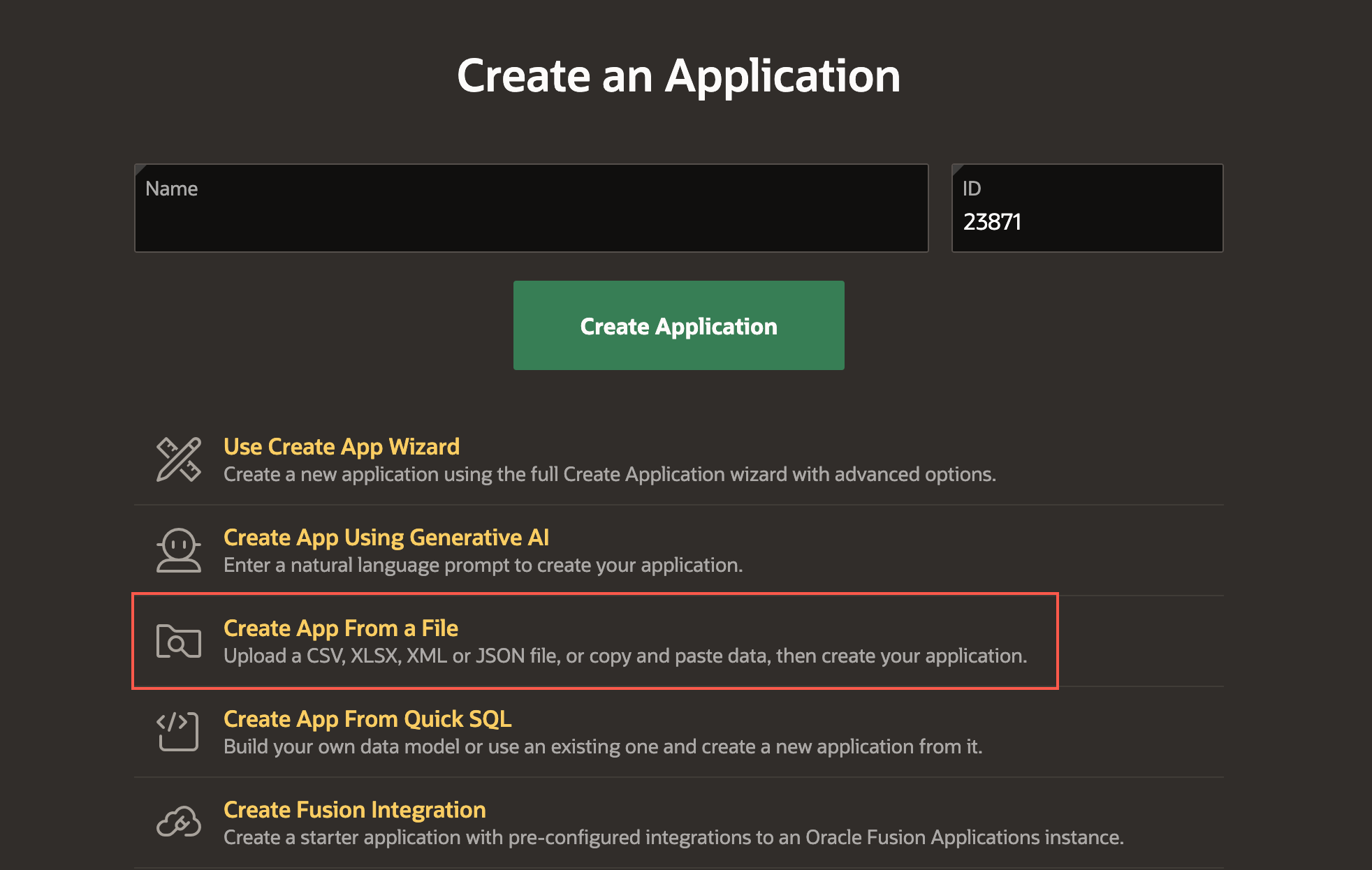

  3. Click Create App From a File.

    Image showing the various options to create an application

    When creating an application from a file, APEX allows you to upload CSV, XLSX, XML, or JSON files and then build apps based on their data. Alternatively, you can also copy and paste CSV data or load sample data.

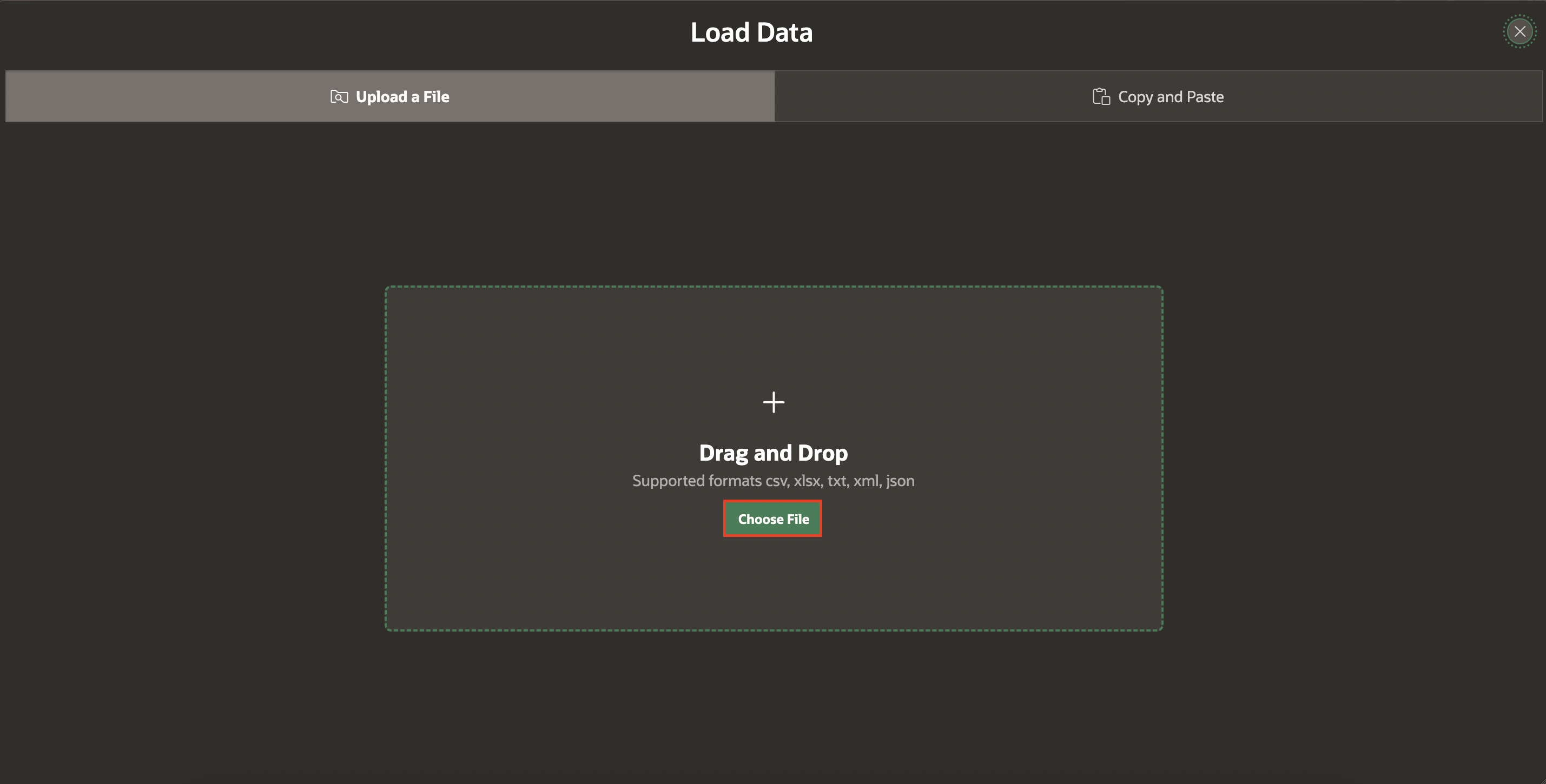

  4. Within the Load Data wizard, click the Choose File option or drag and drop the nyc_high_schools.xlsx file on to the dialog window.

    Image showing a wizard to upload a file

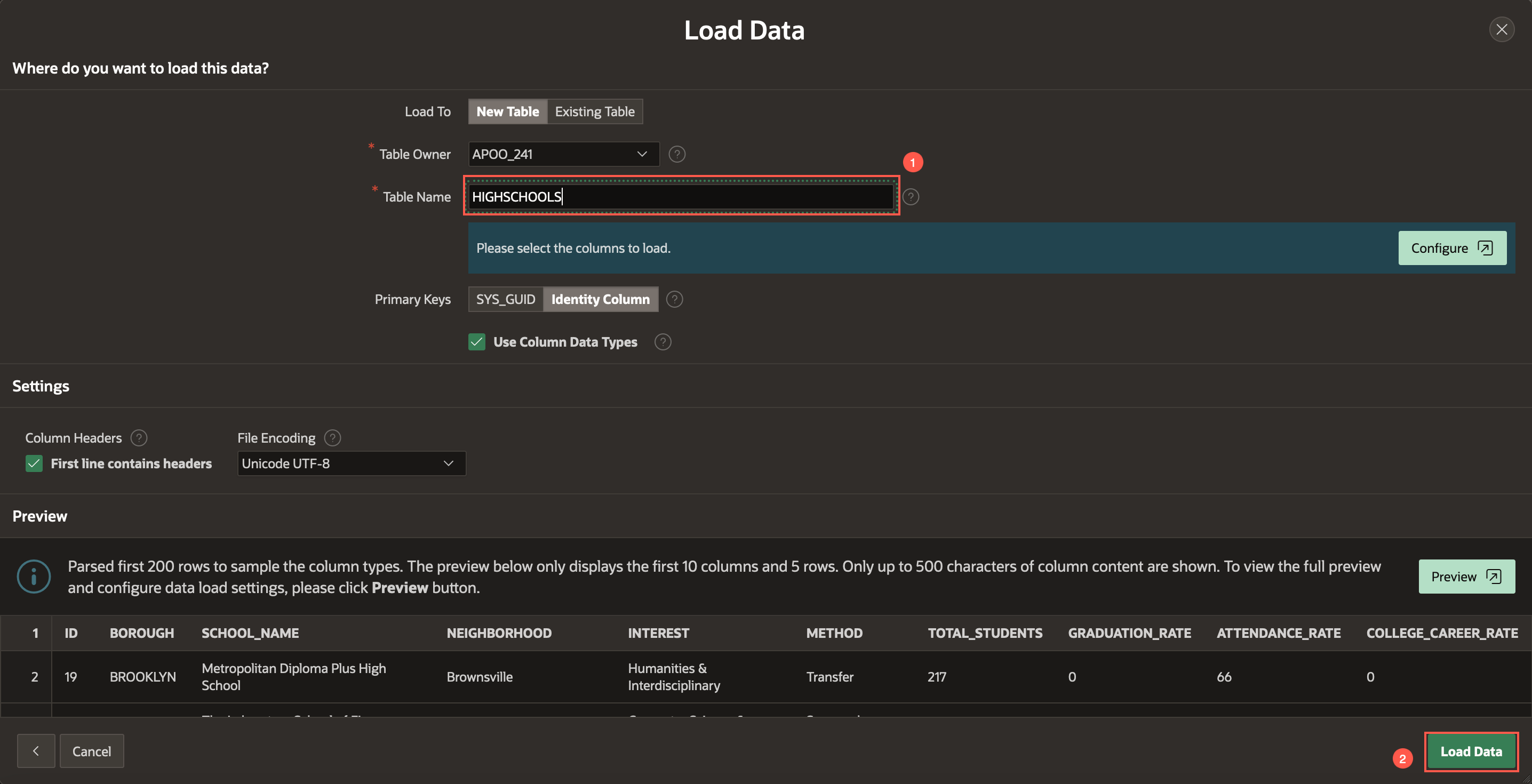

  5. Review the parsed data. Set Table Name to HIGHSCHOOLS and click Load Data. Note: You can configure what columns to load from the spreadsheet by clicking the Configure button.

    Image showing the Load Data wizard

    After clicking Load Data, you will see a spinner until the wizard finishes loading the data. Continue to Task 2 at this point.

Task 2: Create an Application

The Data Load wizard has created a new table called HIGHSCHOOLS and populated the table with the records from the sample data. Now, you can create an app based on this new table.

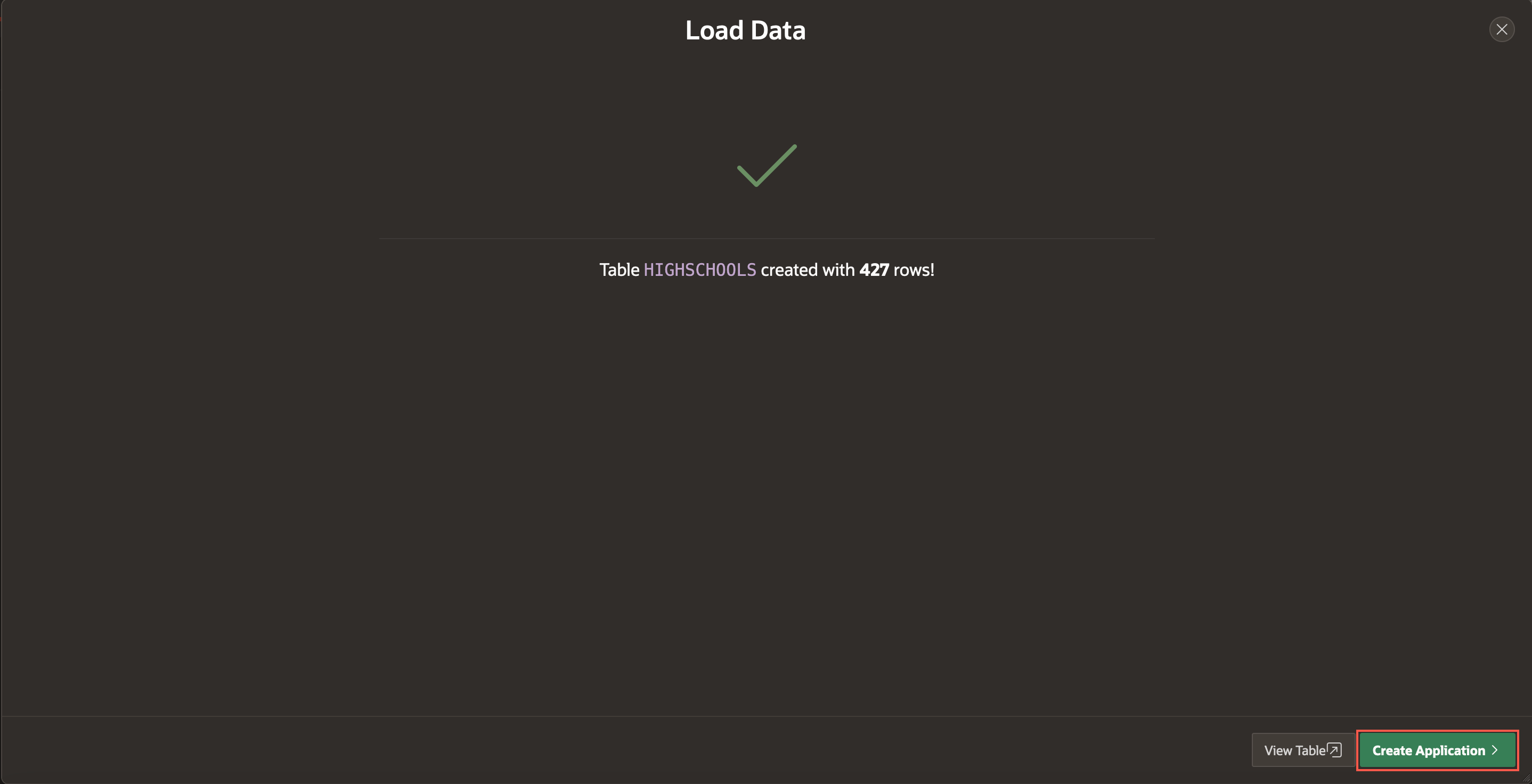

  1. In the Load Data dialog, verify that 427 rows have been loaded into the HIGHSCHOOLS table, then click Create Application.

    Image showing the success message of Load Data and options to View Table or Create Application

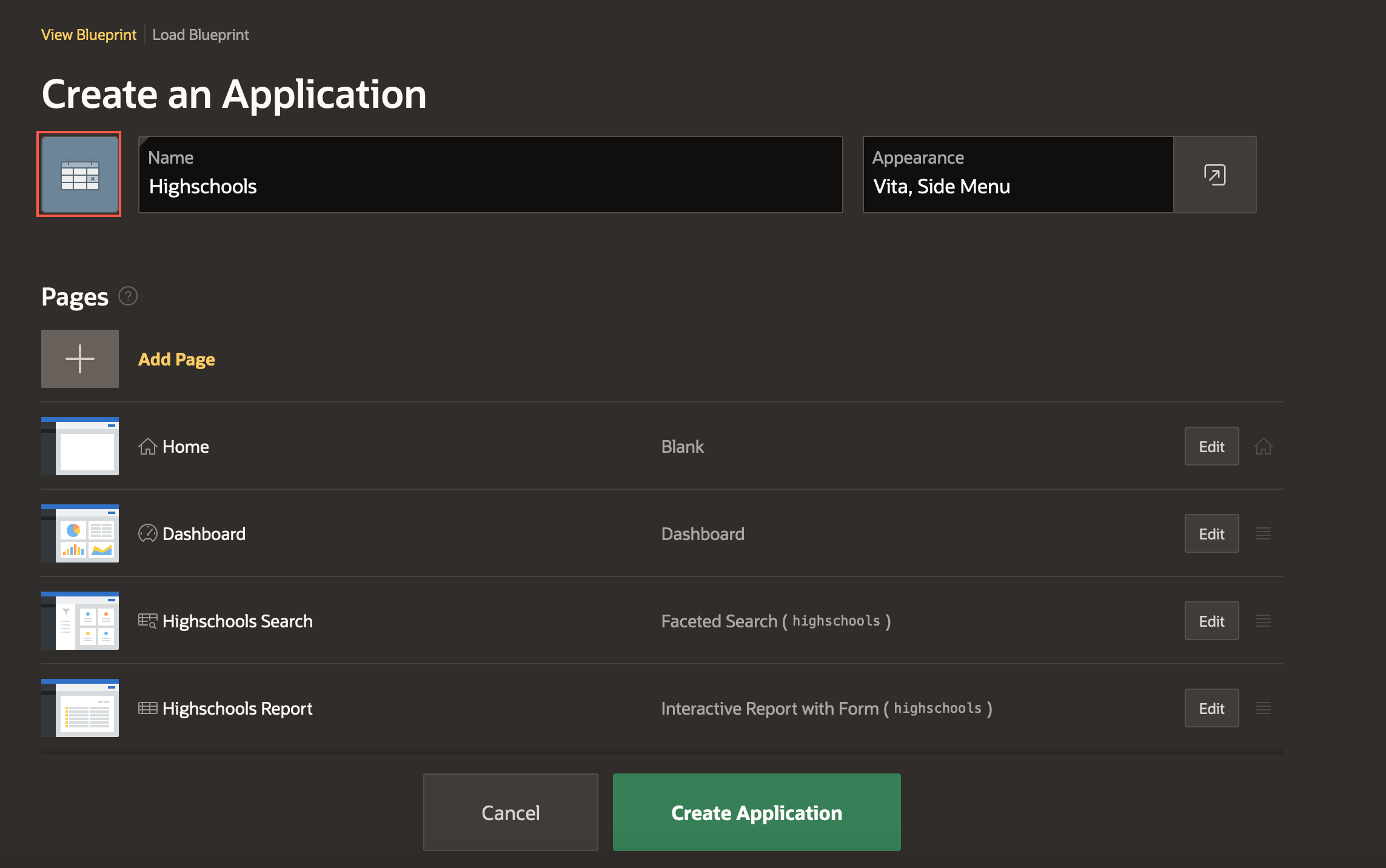

  2. On the Create Application page, click the application icon. Image showing the Create Application Page

  3. In the Choose Application Icon wizard, upload your own icon by selecting or dragging and dropping an image. Download a sample icon from here. Image showing the Choose Application Icon wizard

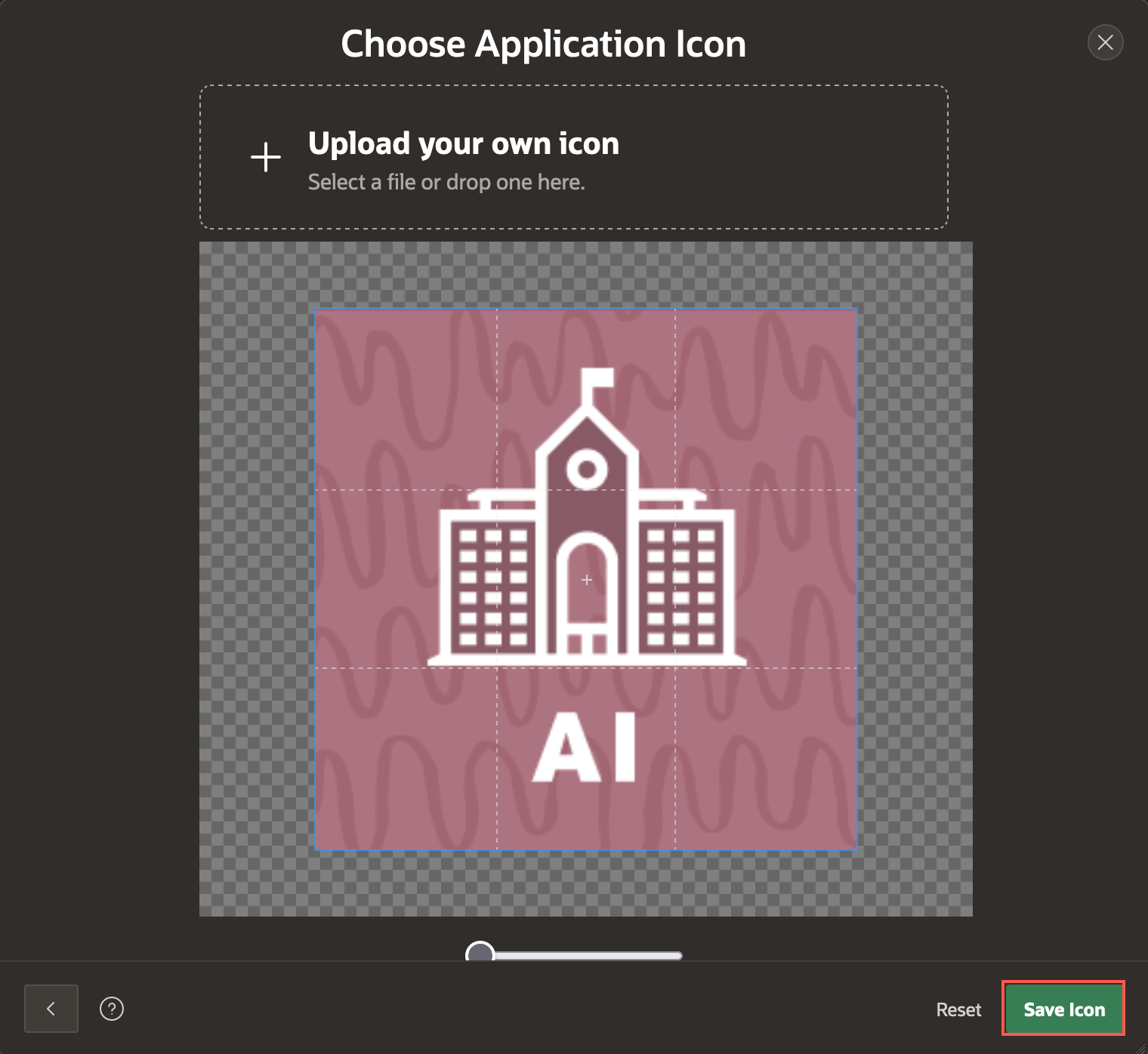

  4. Once you select an image, the wizard allows you to crop or resize the image. Click Save Icon. Image showing an icon editor in Choose Application Icon wizard

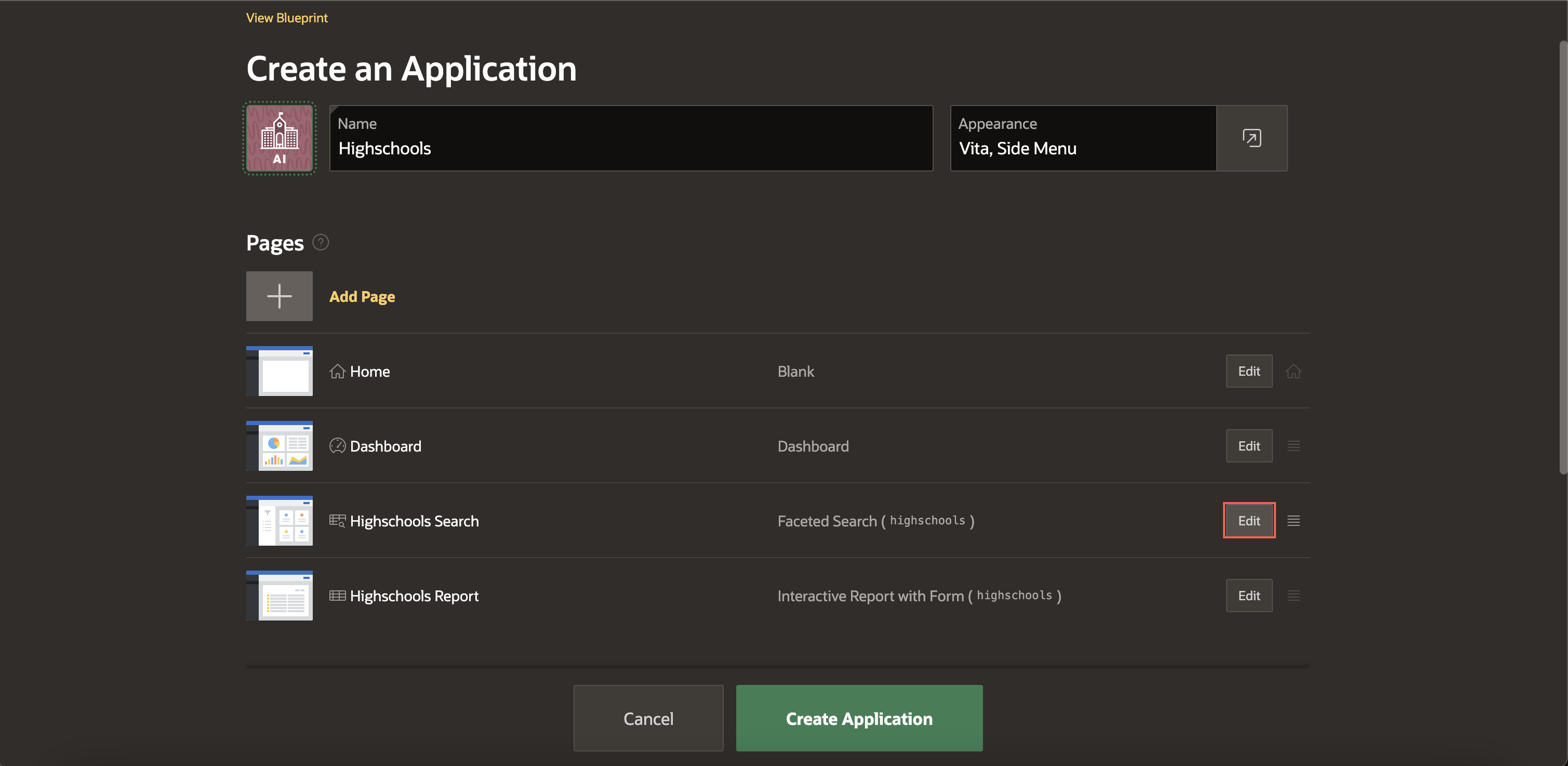

  5. In the Create Application page, review the pages listed by default.

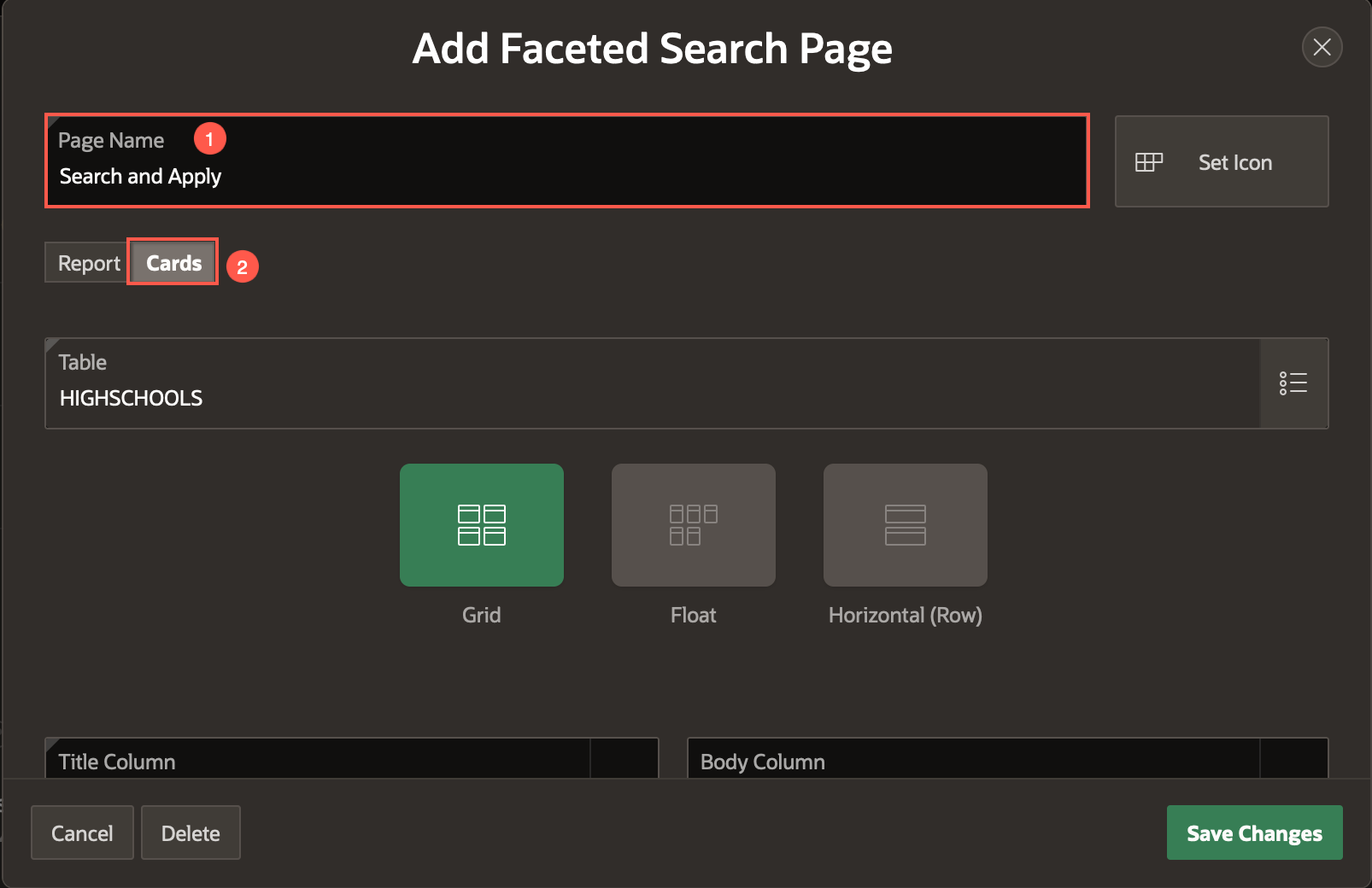

    Click the Edit button for Highschools Search and update the following:

    • Page Name: Search and Apply
    • For Page Type, choose Cards toggle button.

    Edit App page Edit Page wizard

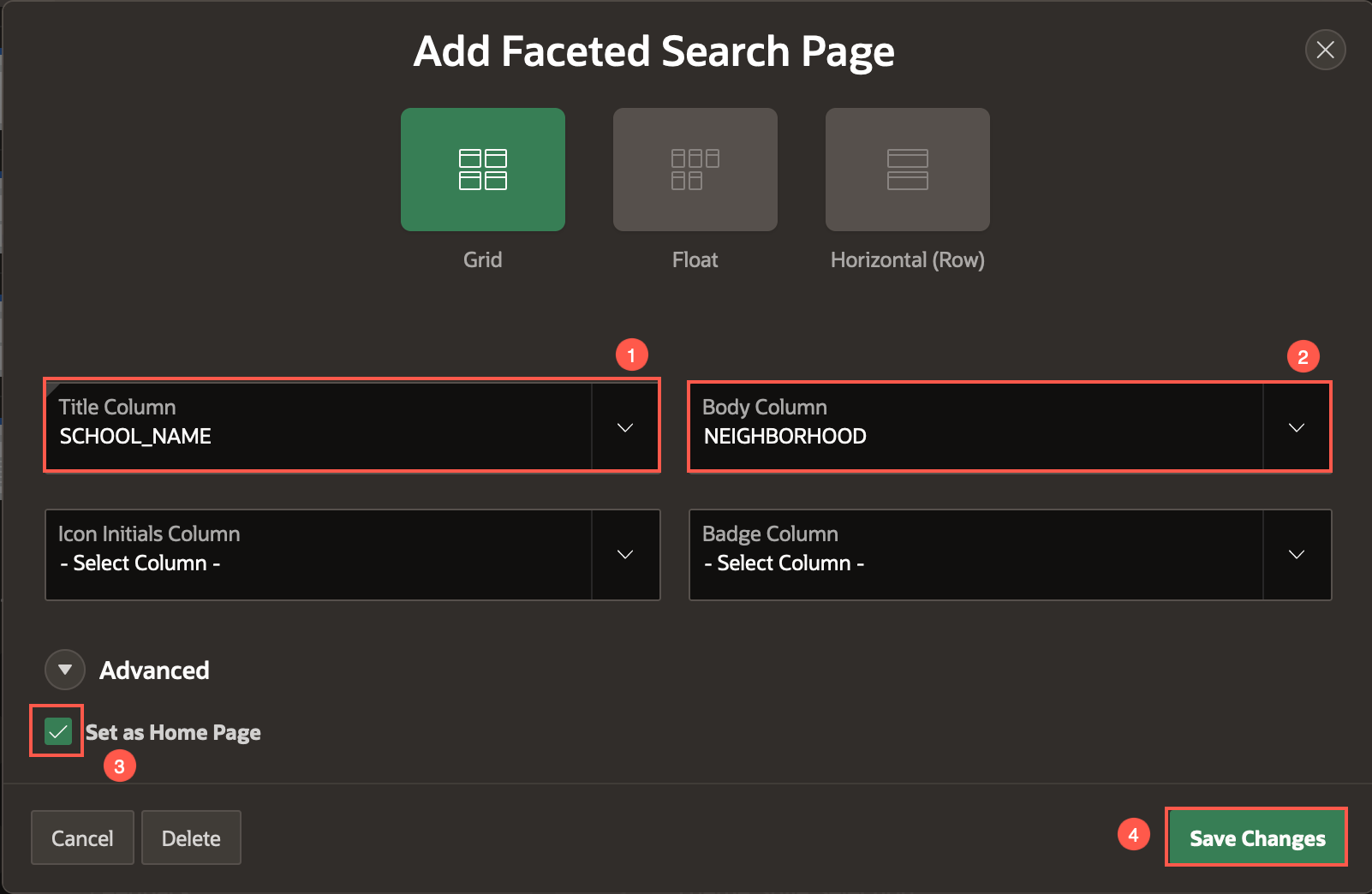

  6. For the Cards properties, select the following:

    • Title Column: SCHOOL_NAME
    • Body Column: NEIGHBORHOOD
    • Expand Advanced section and check the Set as Home Page box

    Click Save Changes. Edit Page wizard

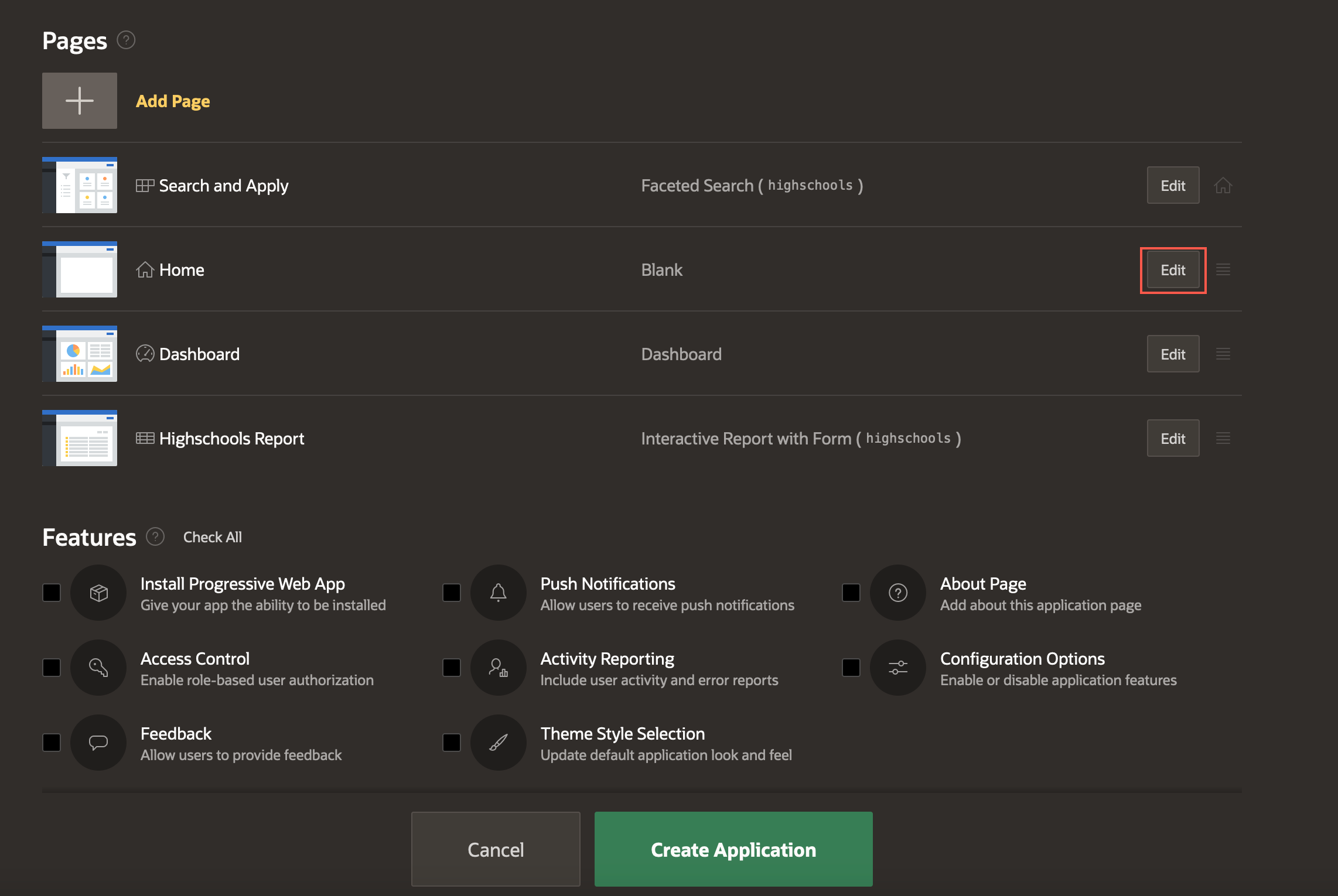

  7. Next, we delete the pages that we no longer need. Click Edit next to the Home page. Edit Page wizard

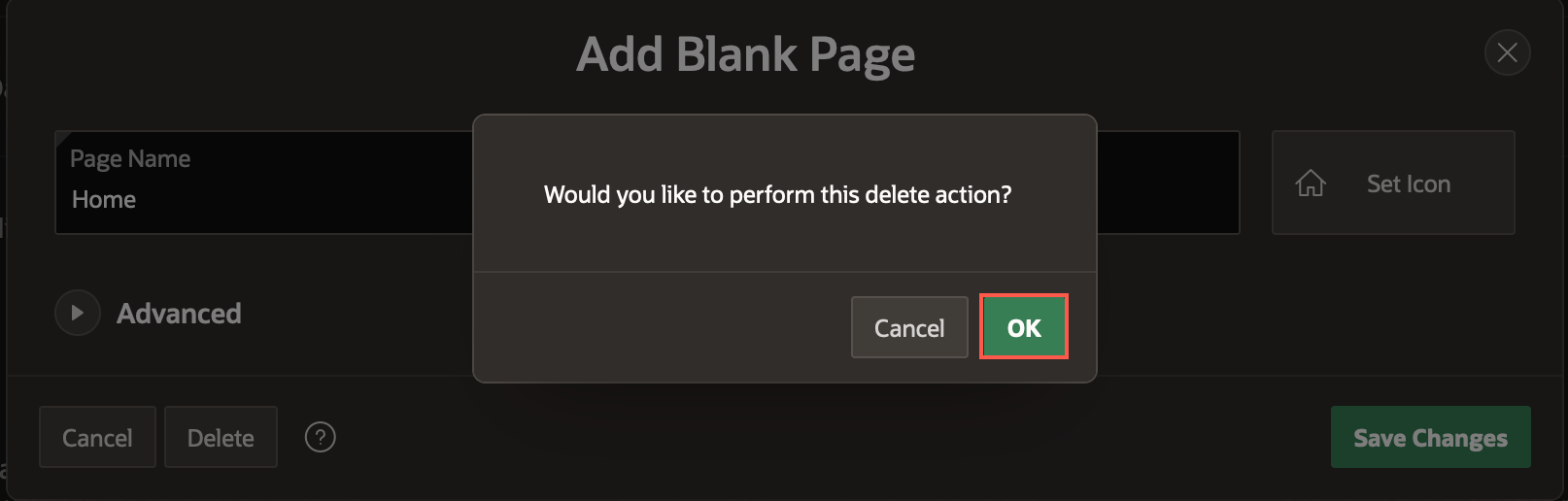

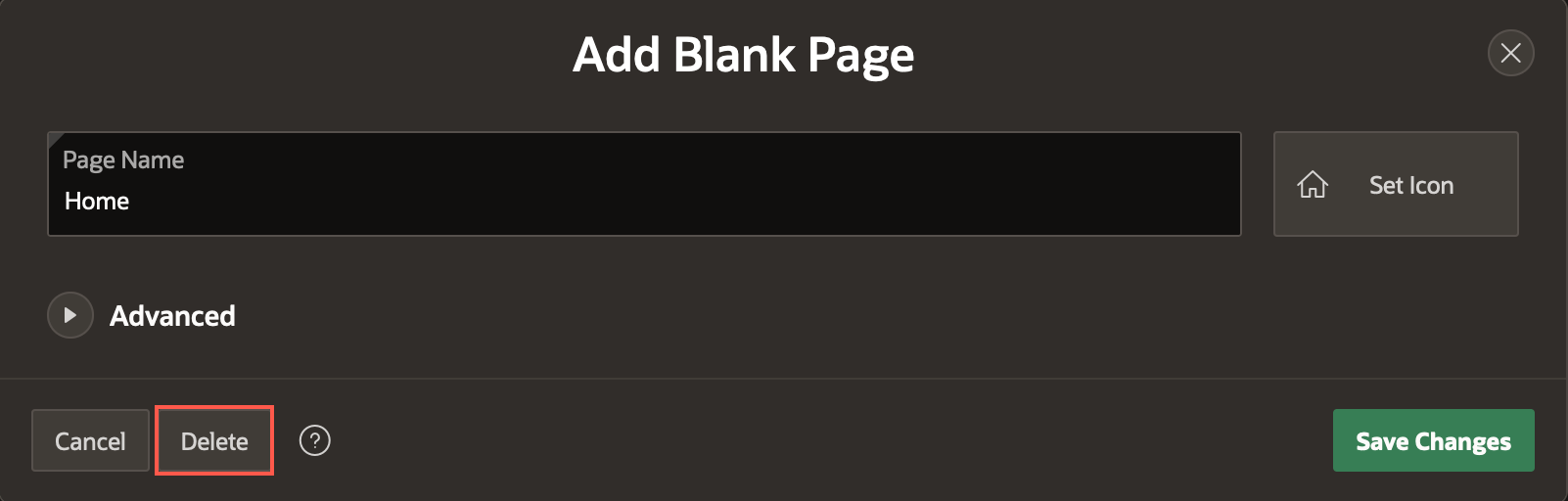

  8. Click Delete. In the dialog 'Would you like to perform this delete action?', select OK. Delete Page wizard

    Confirm Delete dialog

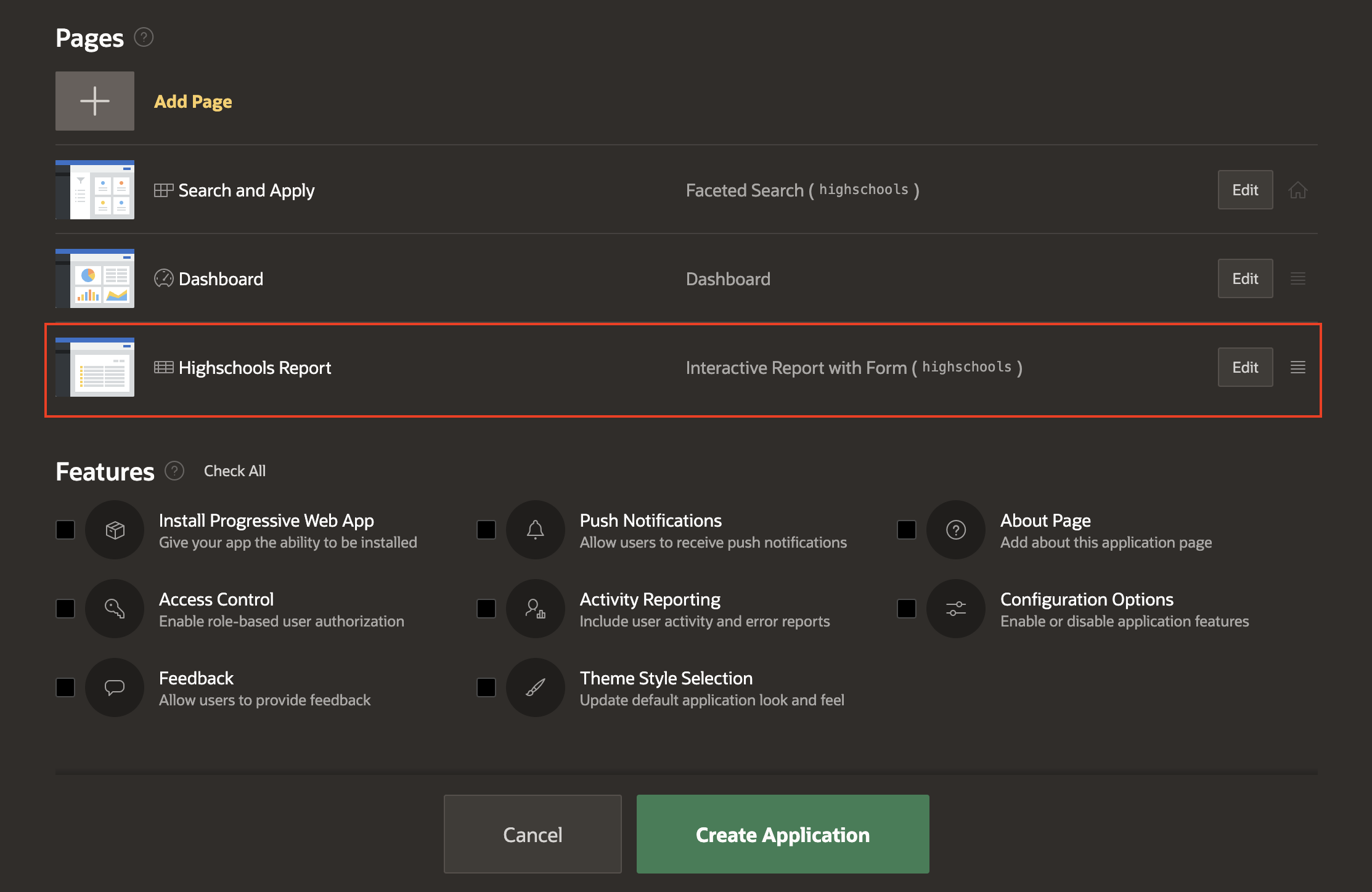

  9. Repeat Steps 7 and 8 to delete the Highschools Report page. Delete page wizard

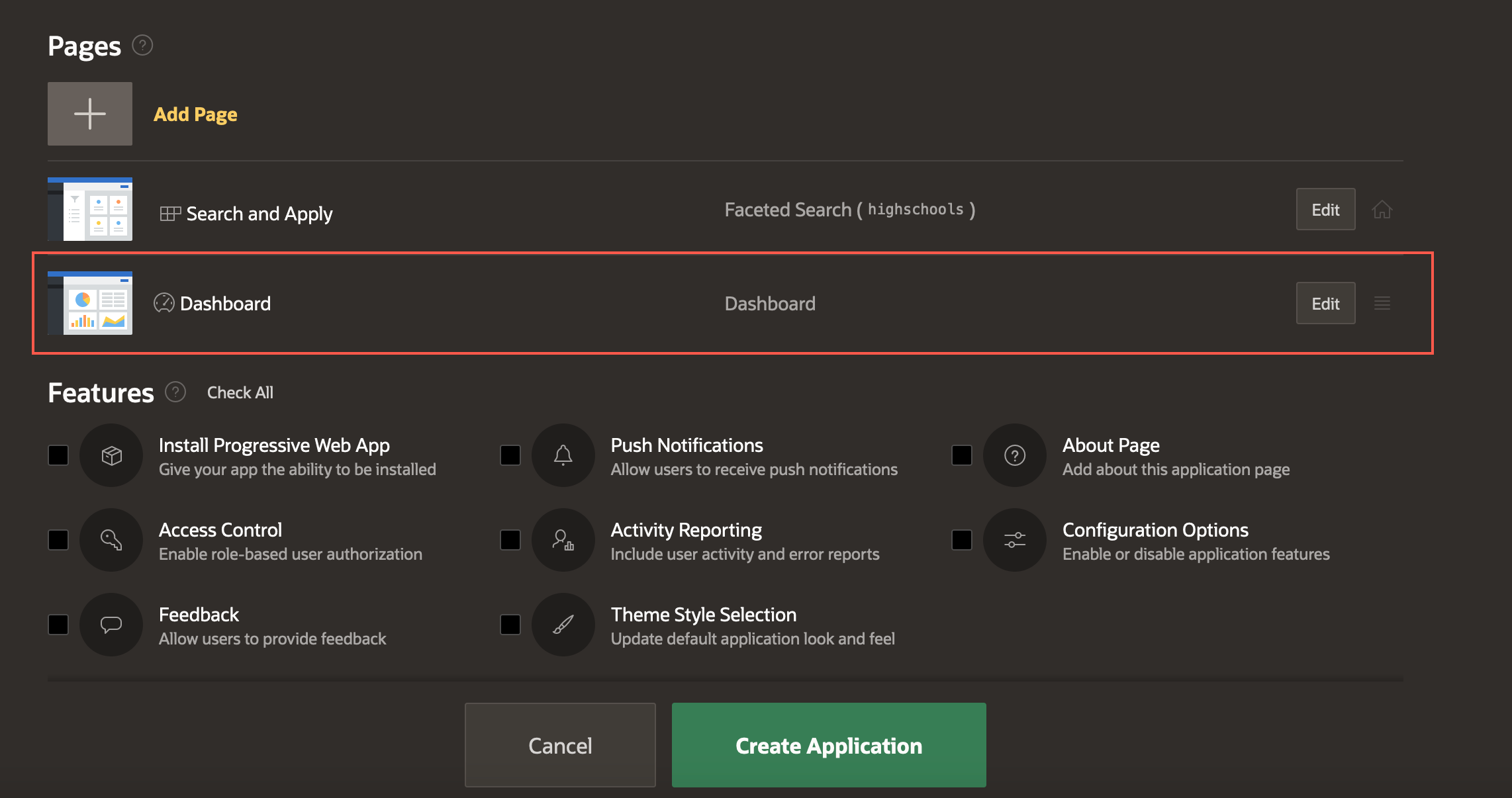

  10. Repeat Steps 7 and 8 to delete the Dashboard page. Delete page wizard

  11. In the Create Application wizard, under Features, check the following checkboxes:

    • Install Progressive Web App
    • Push Notifications

    Click Create Application.

    Image showing the Create Application Page

    When the wizard finishes creating the application, you will be redirected to the application's home page in the App Builder.

Task 3: Configure the Cards Region

In this task, we configure the Cards region to display the information that we need.

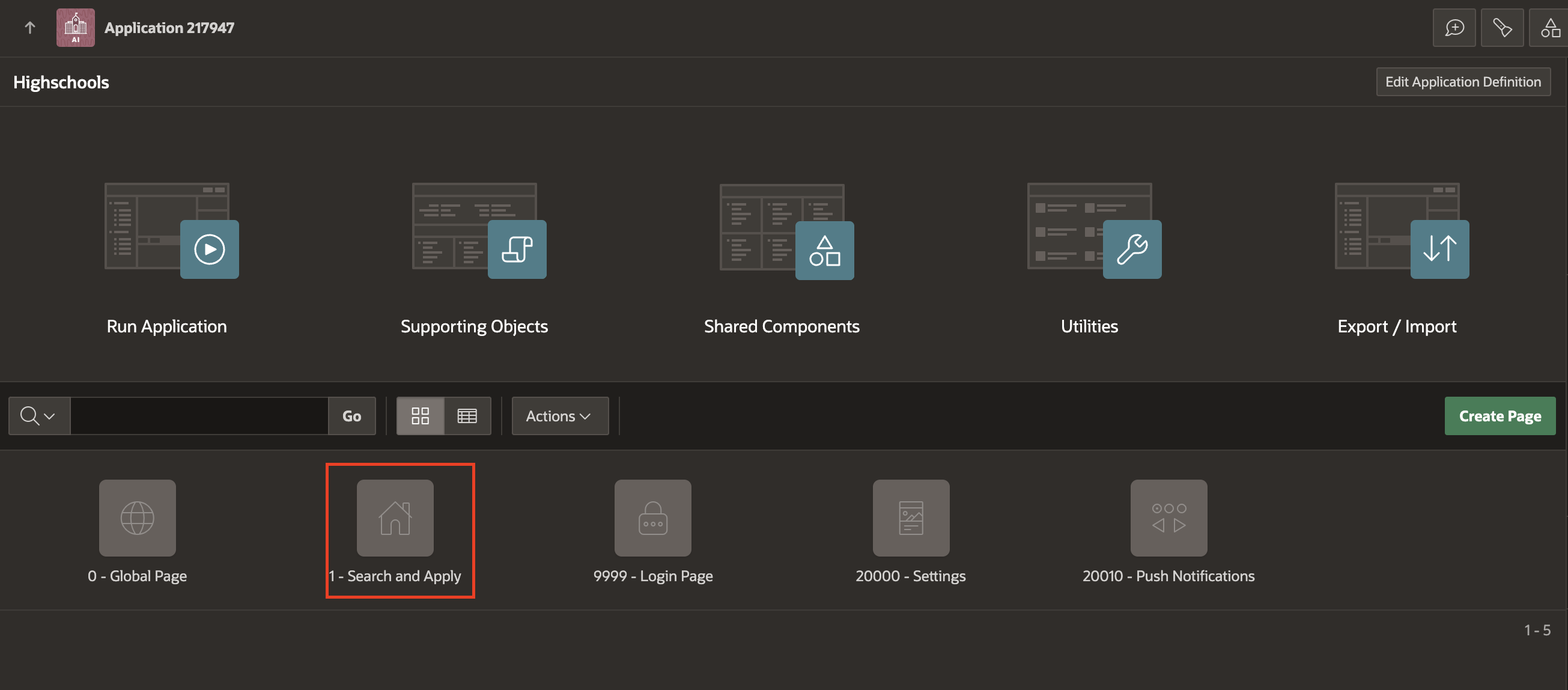

  1. Navigate to Search and Apply page. Application Home Page

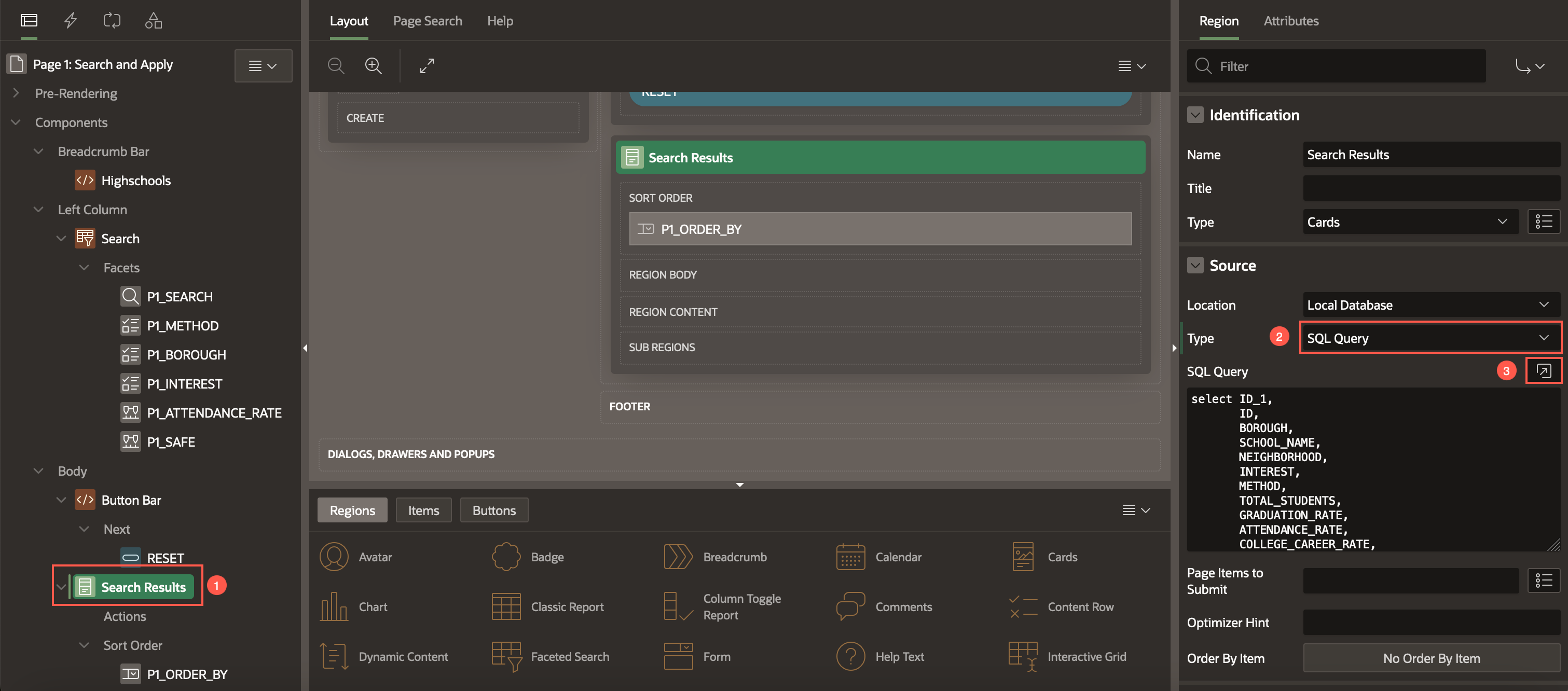

  2. In the Rendering Tree, under Body, select Search Results region.

    In the Property Editor, enter/select the following:

    • Under Source:

      • Type: SQL Query
      • SQL Query: Replace the SQL query with the following
        select ID,
        BOROUGH,
        NEIGHBORHOOD ||', '|| BOROUGH as LOCATION,
        SCHOOL_NAME,
        NEIGHBORHOOD,
        INTEREST,
        METHOD,
        ATTENDANCE_RATE,
        GRADUATION_RATE,
        SCHOOL_SPORTS,
        TOTAL_STUDENTS,
        to_char(TOTAL_STUDENTS,'999G999G999G999G999') as total_students_disp,
        SAFE
        from HIGHSCHOOLS

      Page Designer

      Page Designer

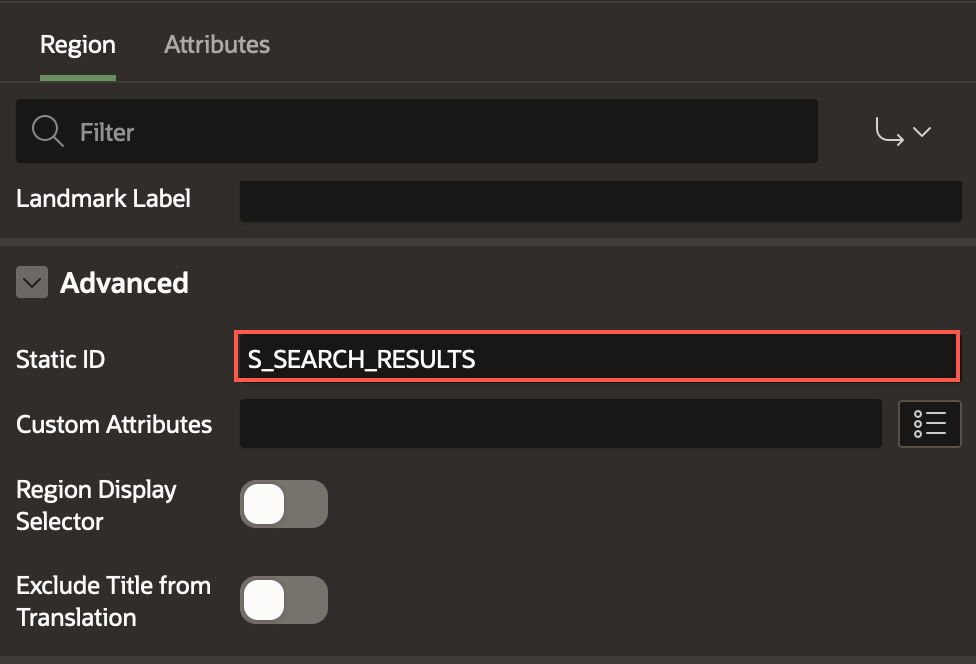

    • Advanced > Static ID: S_SEARCH_RESULTS Page Designer

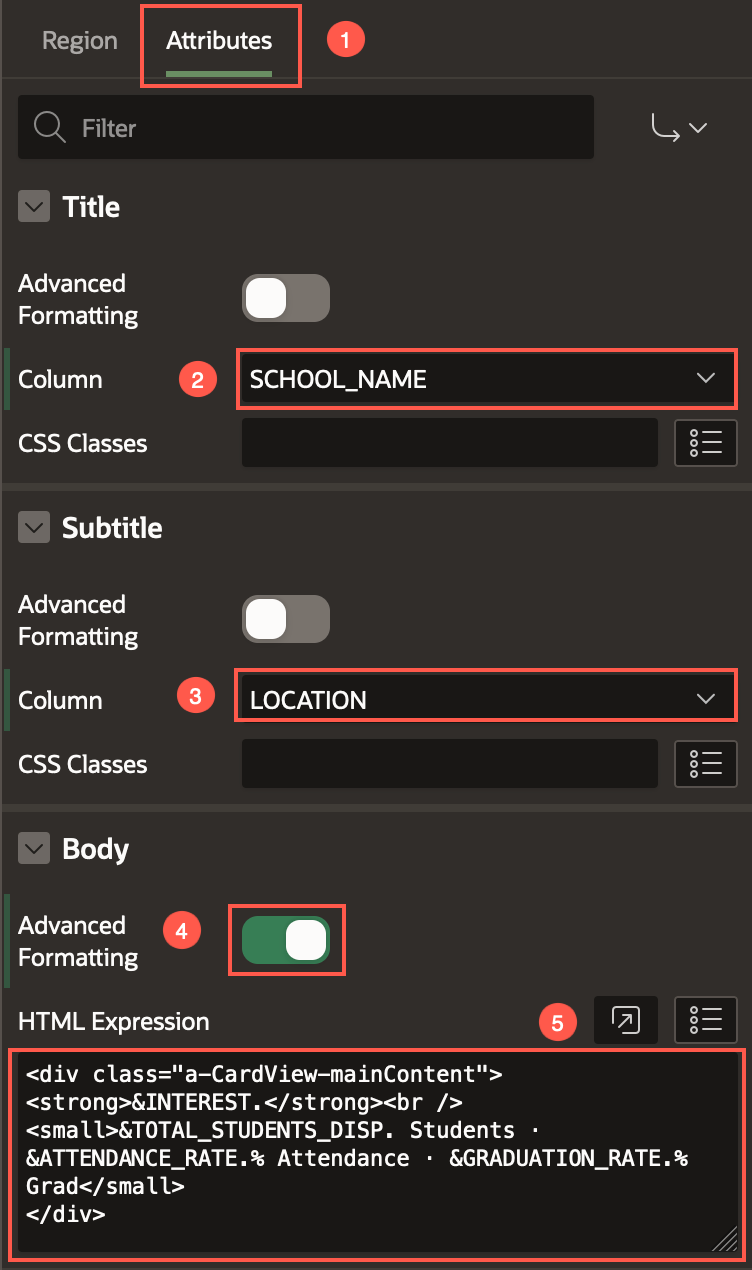

  3. Switch to the Attributes tab and select the following:

    • Title > Column: SCHOOL_NAME

    • Subtitle > Column: LOCATION

    • Body:

      • Advanced Formatting: Toggle the Button to turn it ON.
      • HTML Expression:
        <div class="a-CardView-mainContent">
            <strong>&INTEREST.</strong><br />
            <small>&TOTAL_STUDENTS_DISP. Students · &ATTENDANCE_RATE.% Attendance · &GRADUATION_RATE.% Grad</small>
        </div>

      Page Designer

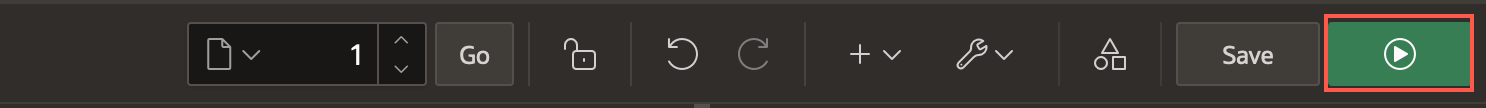

  4. Click Save and Run page. Page Designer

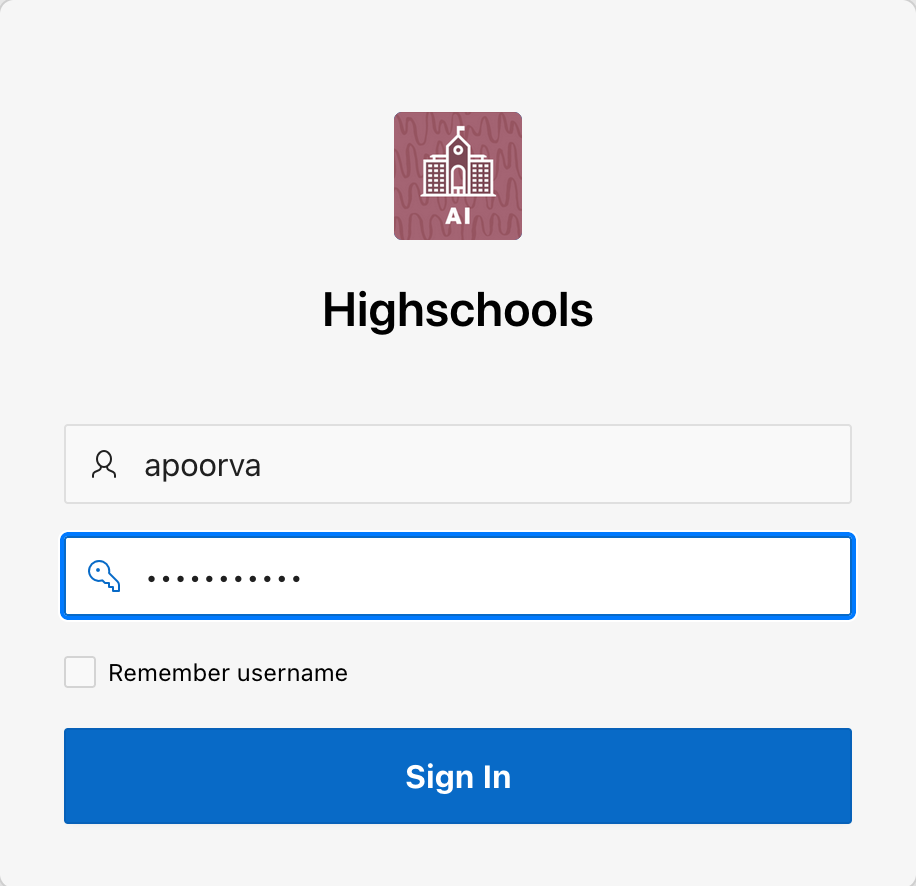

    App login screen

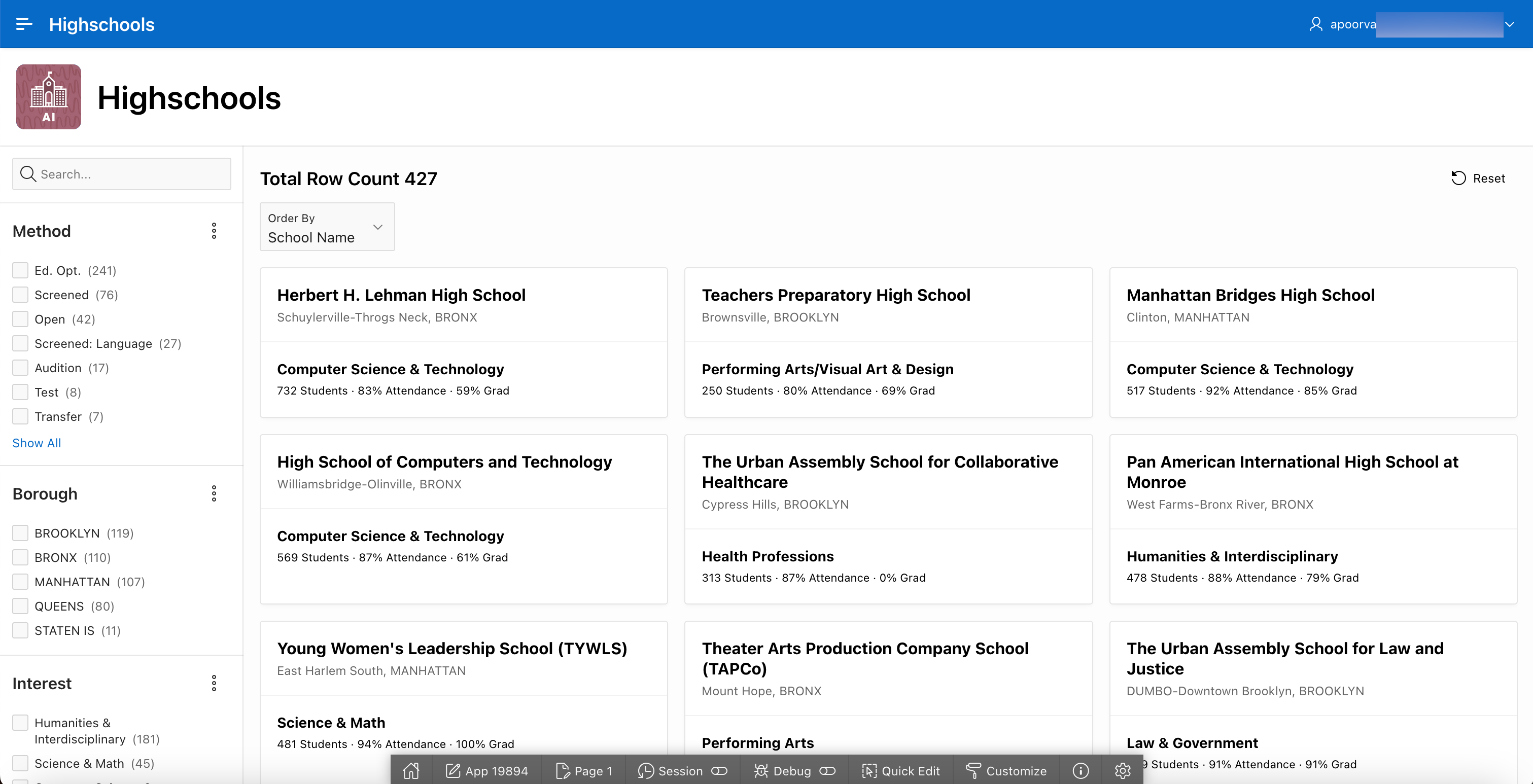

    App is displayed

Task 4: Improve the UI

  1. Click Edit Page 1 from the Developer Toolbar. App is displayed

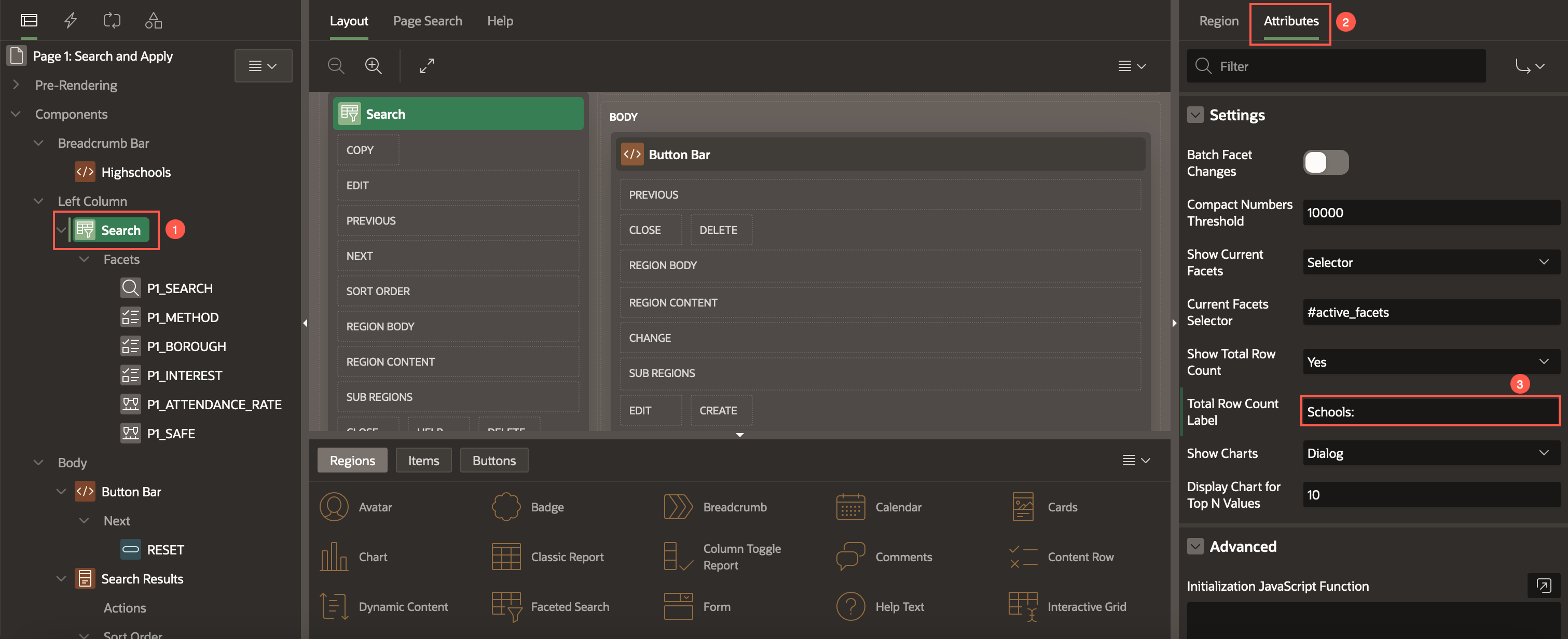

  2. In the Rendering Tree, select Search.

    In the Property Editor, switch to the Attributes tab and enter the following:

    • Total Row Count Label: Schools:

    Page Designer

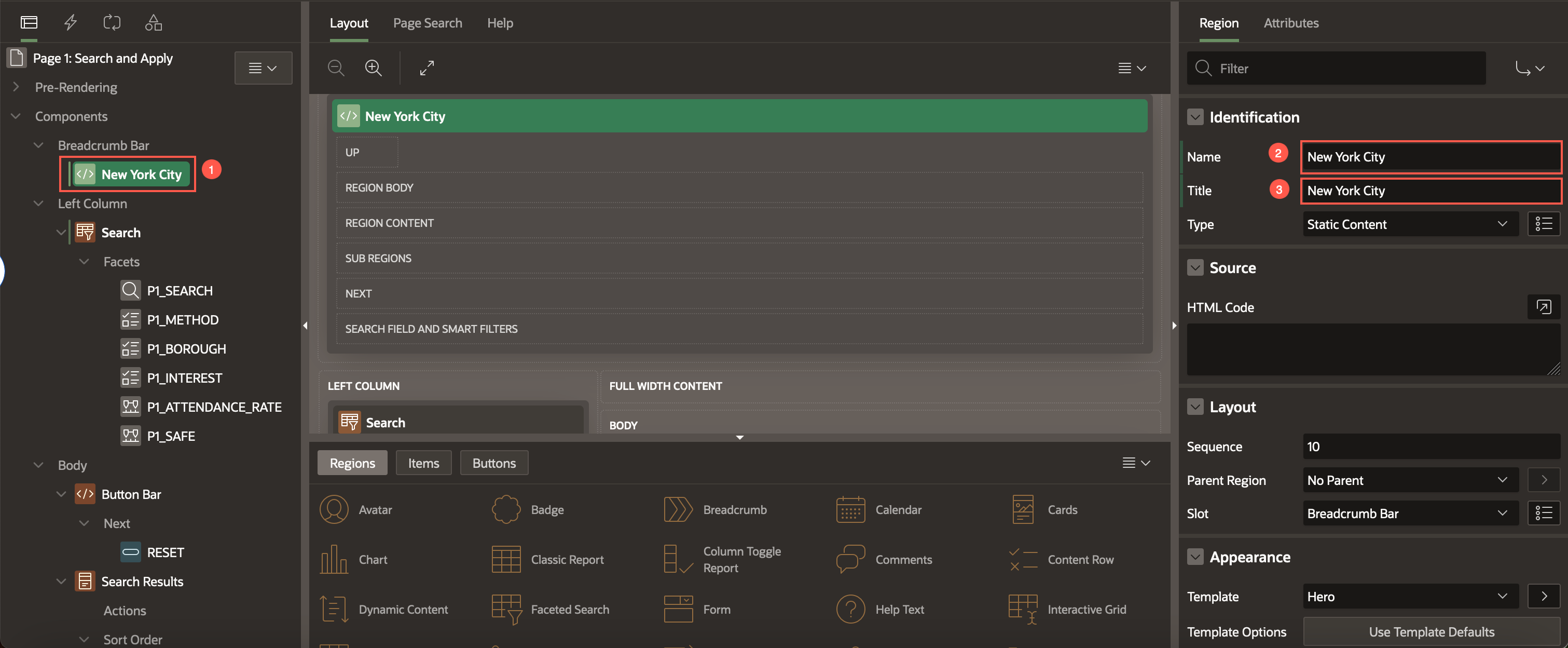

  3. Under Breadcrumb Bar, select Highschools. In the Property Editor, enter the following:

    • Name: New York City
    • Title: New York City

    Page Designer

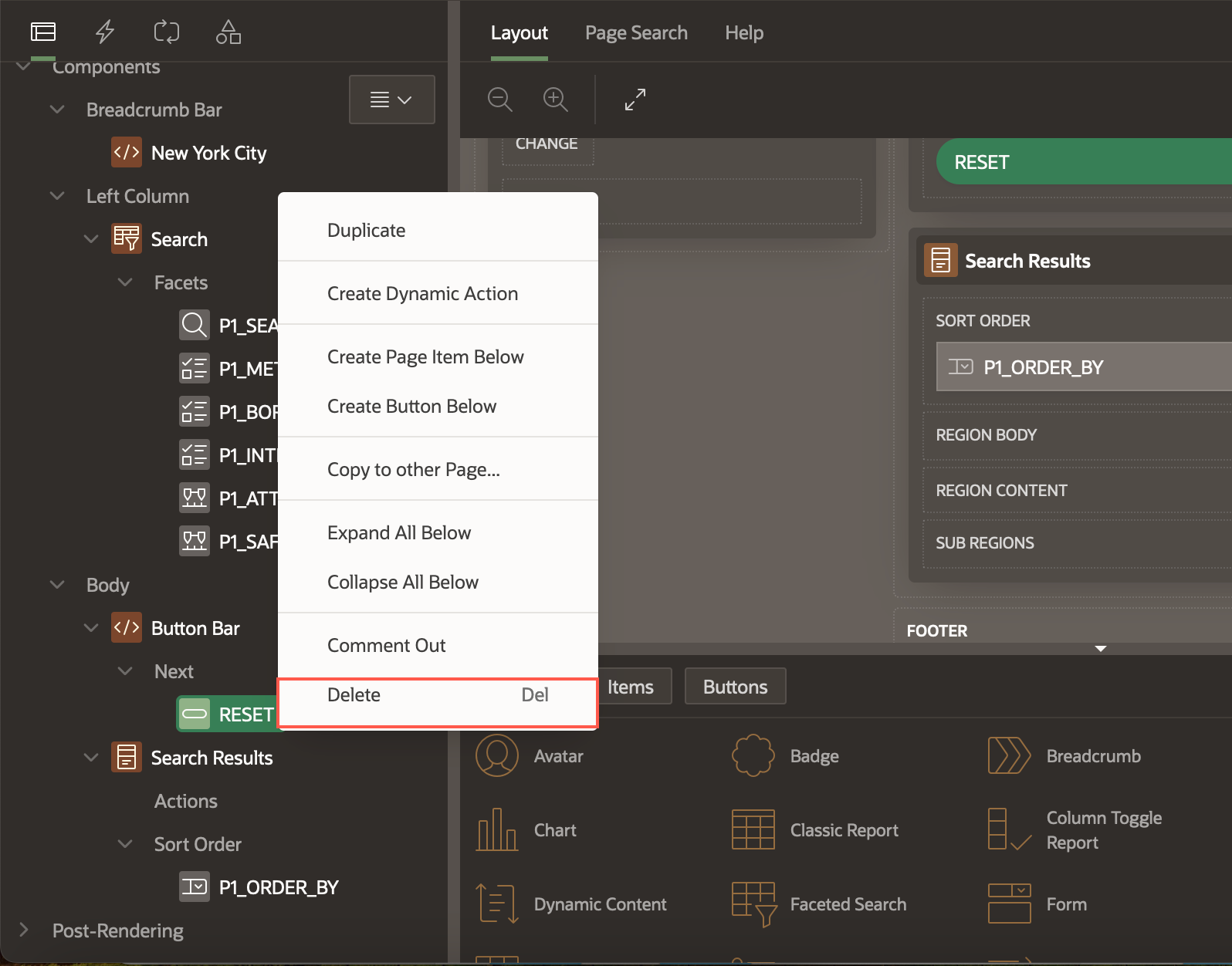

  4. Under Body > Button Bar, right-click RESET and select Delete.

    Page Designer

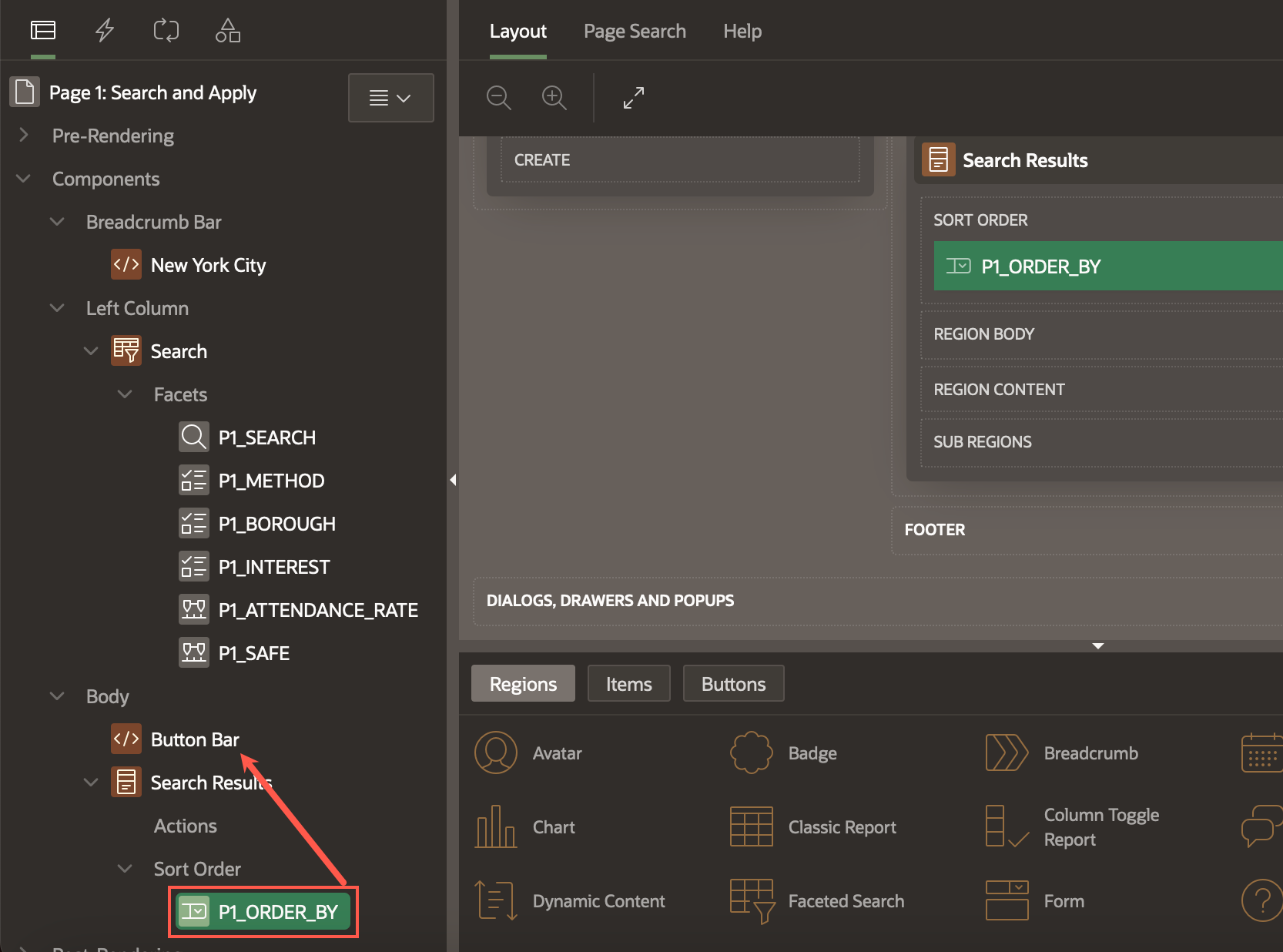

  5. Locate P1_ORDER_BY page item and drag and drop it under Button Bar. Page Designer

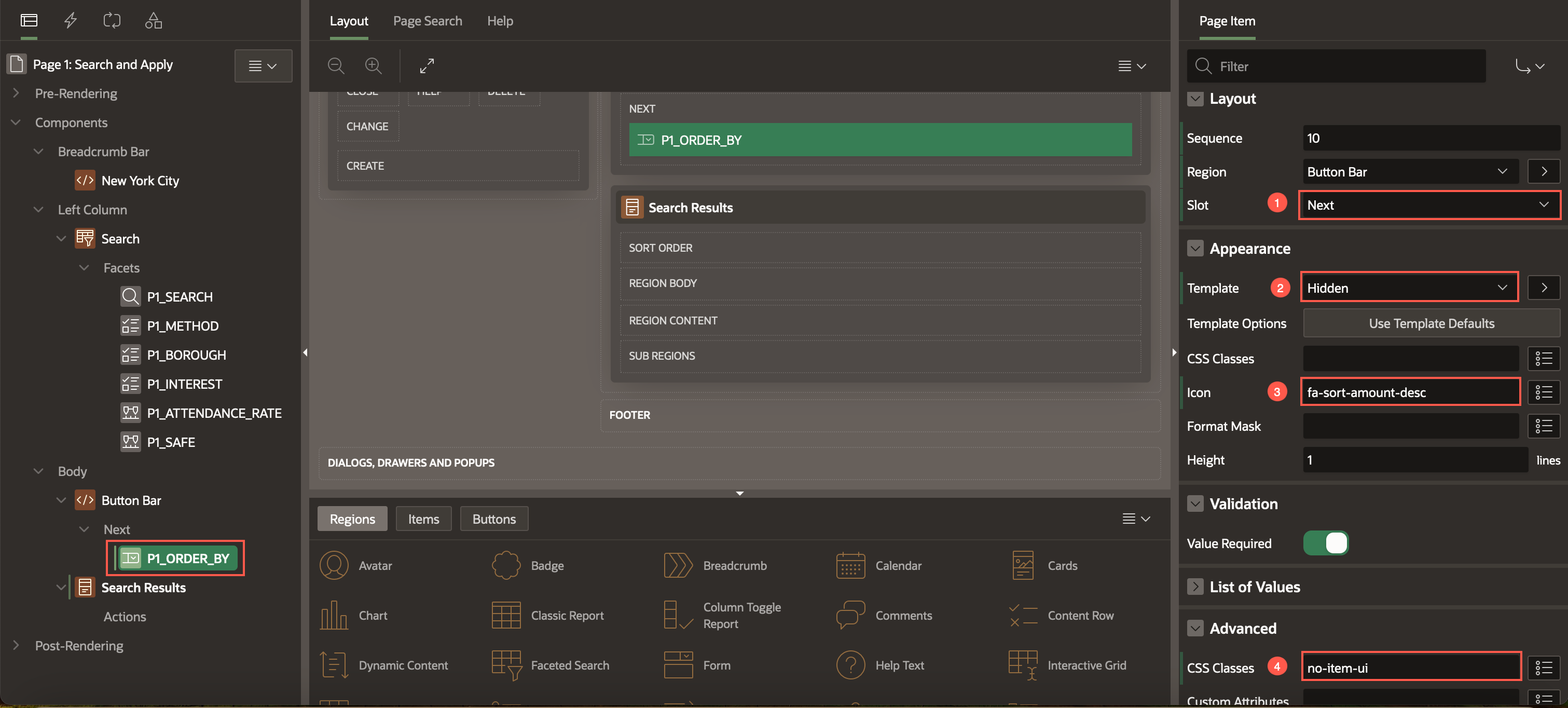

  6. In the Property Editor, enter/select the following:

    • Layout > Slot: Next

    • Under Appearance:

      • Template: Hidden
      • Icon: fa-sort-amount-desc
    • Advanced > CSS Classes: no-item-ui

    Page Designer

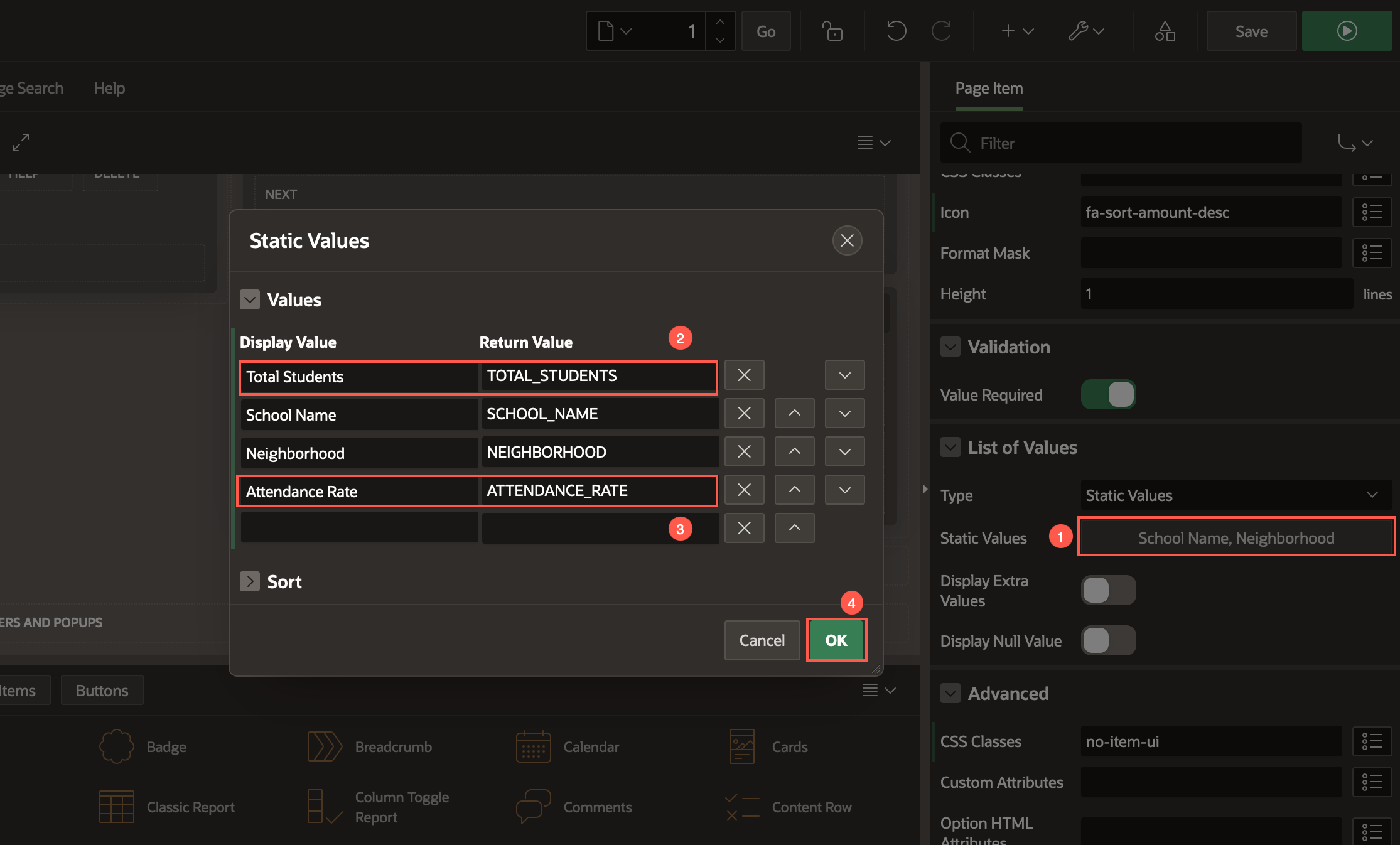

    • List of Values > Static Values: Enter the following and click OK.

      Table 1: List of Values
      Display Value Return Value
      Total Students TOTAL_STUDENTS
      Attendance Rate ATTENDANCE_RATE

    Page Designer

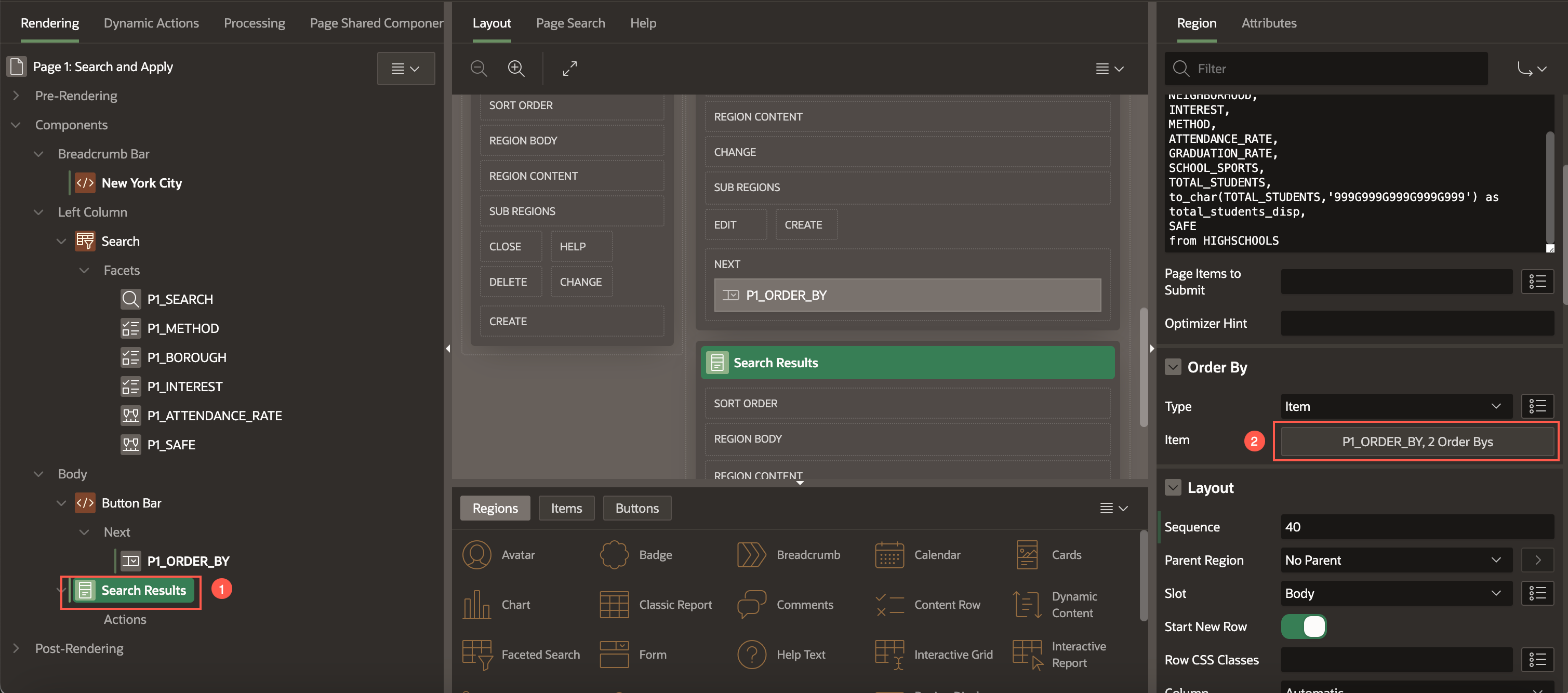

  7. In the Rendering Tree, select Search Results region.

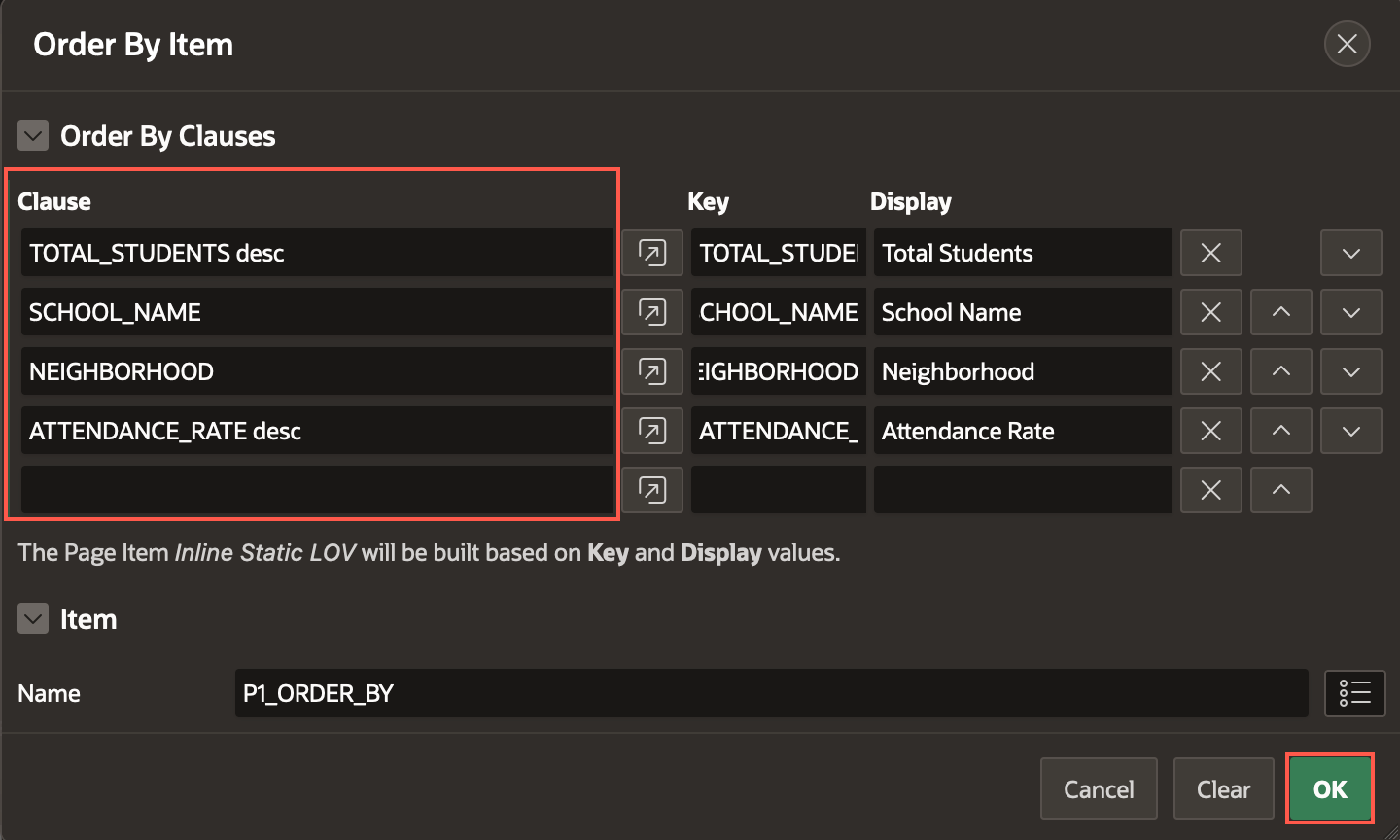

    In the Property Editor, under Order By, for Type, select Item and for Item, enter the following and then click OK.

    Table 2: Order By Clauses
    Clause Key Display
    TOTAL_STUDENTS desc TOTAL_STUDENTS Total Students
    SCHOOL_NAME SCHOOL_NAME School Name
    NEIGHBORHOOD NEIGHBORHOOD Neighborhood
    ATTENDANCE_RATE desc ATTENDANCE_RATE Attendance Rate

    Page Designer

    Page Designer

  8. Click Save and Run page.

Task 5: Customize the Application Theme

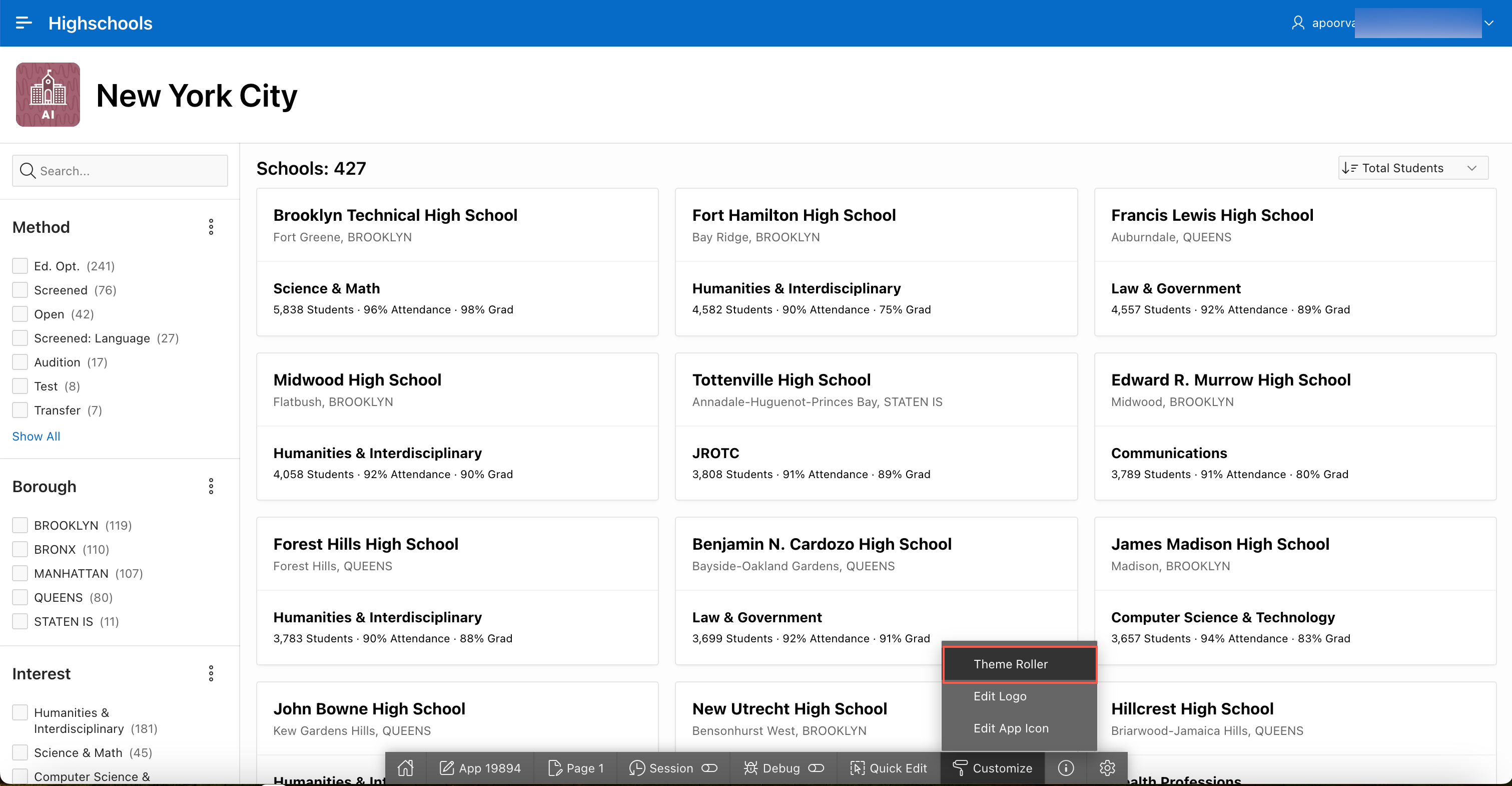

  1. From the Developer Toolbar, click Customize and select Theme Roller.

    Application page in runtime

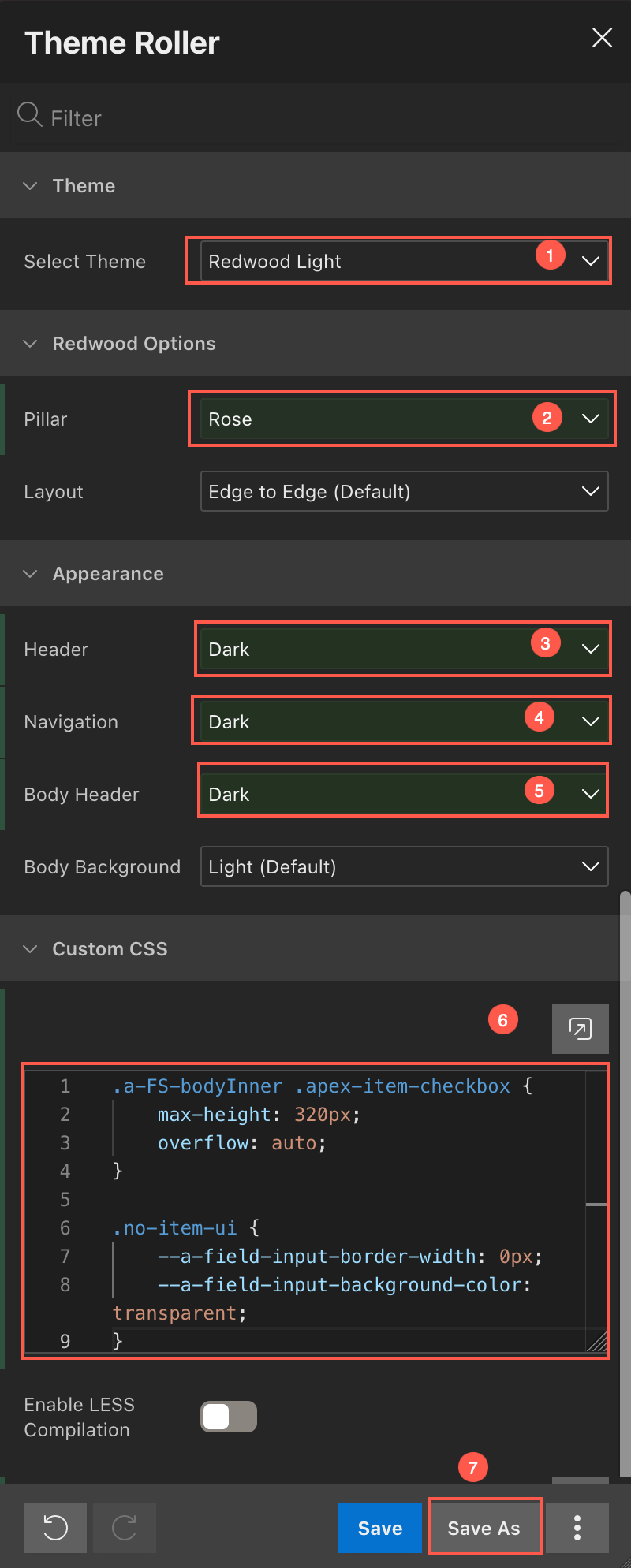

  2. In the Theme Roller dialog, enter/select the following:

    • Select Theme: Redwood Light
    • Under Redwood Options:
      • Pillar: Rose
    • Under Appearance:
      • Header: Dark
      • Navigation: Dark
      • Body Header: Dark
    • Custom CSS:
      .a-FS-bodyInner .apex-item-checkbox {
          max-height: 320px;
          overflow: auto;
      }

      .no-item-ui {
          --a-field-input-border-width: 0px;
          --a-field-input-background-color: transparent;
      }

    Application page in runtime with Theme roller dialog open

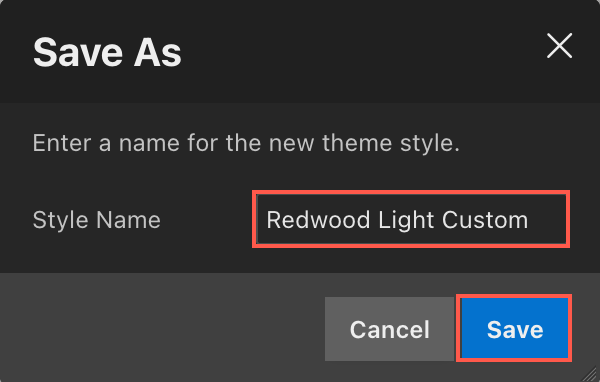

  3. Click Save As. In the dialog, for Style Name, enter Redwood Light Custom. Finally, click Save. Theme Roller Save as

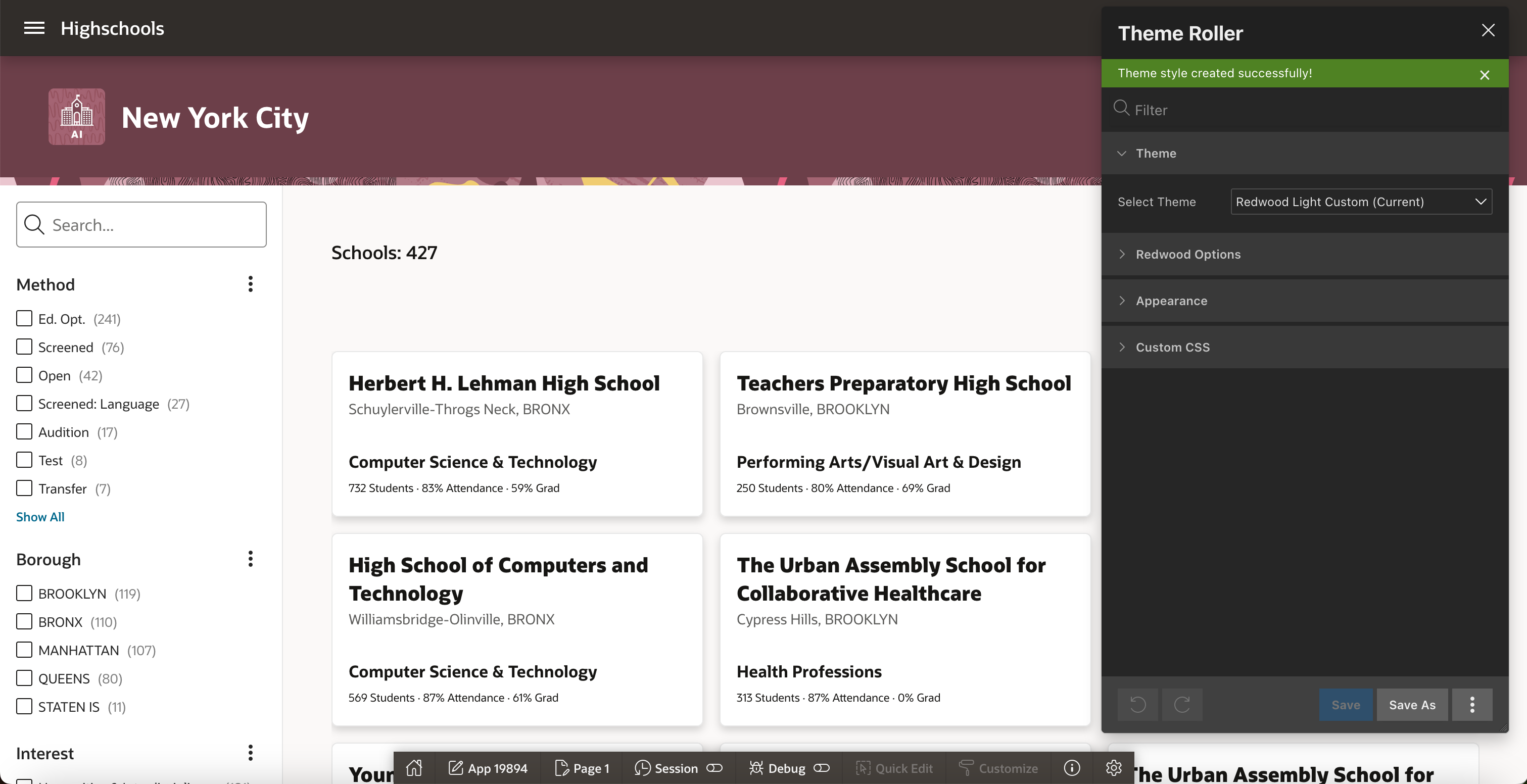

    App with redwood light theme

    You have successfully customized the application theme.

Summary

You now know how to create an Oracle APEX application from a spreadsheet. You also learnt to customize the pages and the theme of the application.

You may now proceed to the next lab.

Acknowledgments

  • Authors - Toufiq Mohammed, Senior Product Manager; Apoorva Srinivas, Senior Product Manager
  • Contributing Author - Pankaj Goyal, Member Technical Staff
  • Last Updated By/Date - Apoorva Srinivas, Senior Product Manager, February 2025
