Appendix: Download Instructions

Objectives

In this lab, you will:

• Download and install the final export of the app.

Task 1: Import the App into an APEX Workspace

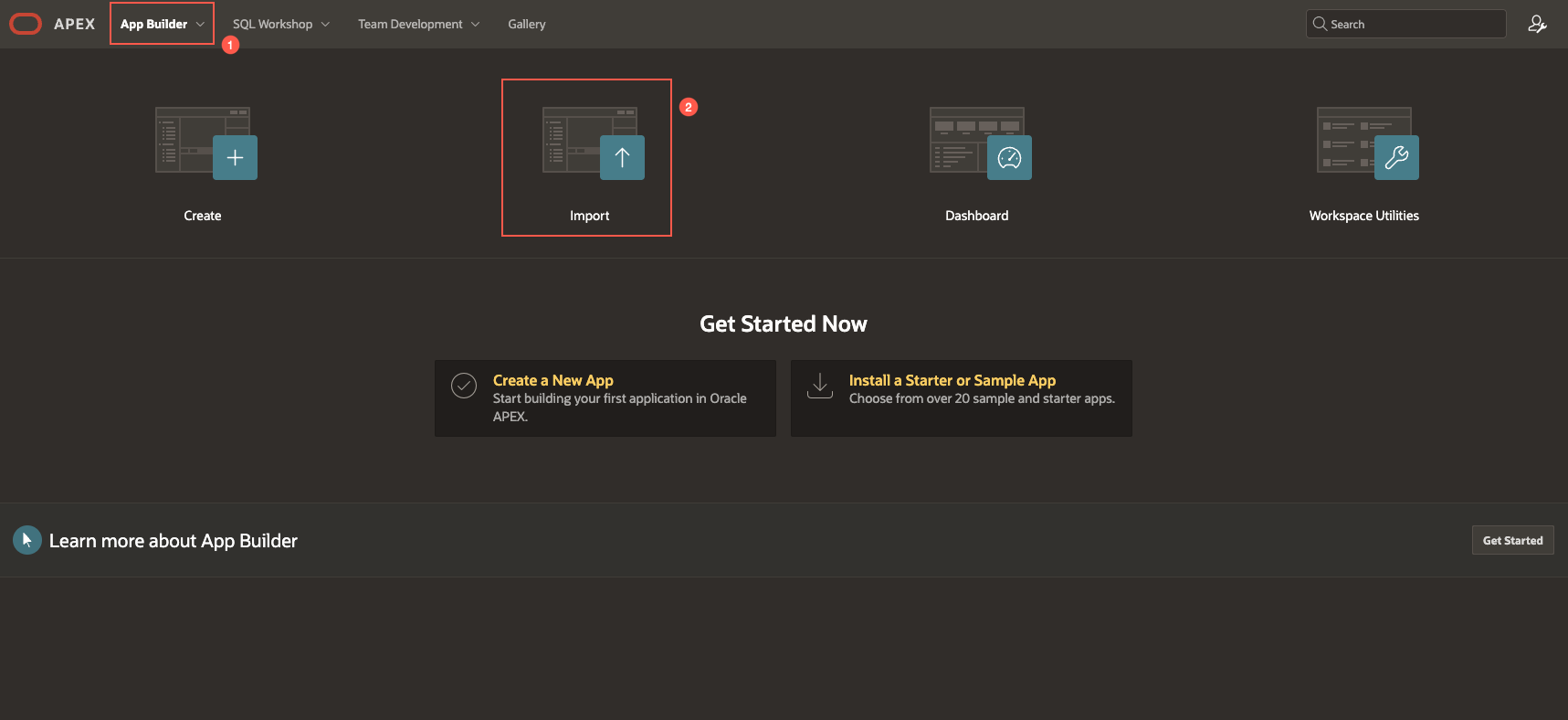

1. Navigate to App Builder and click Import.

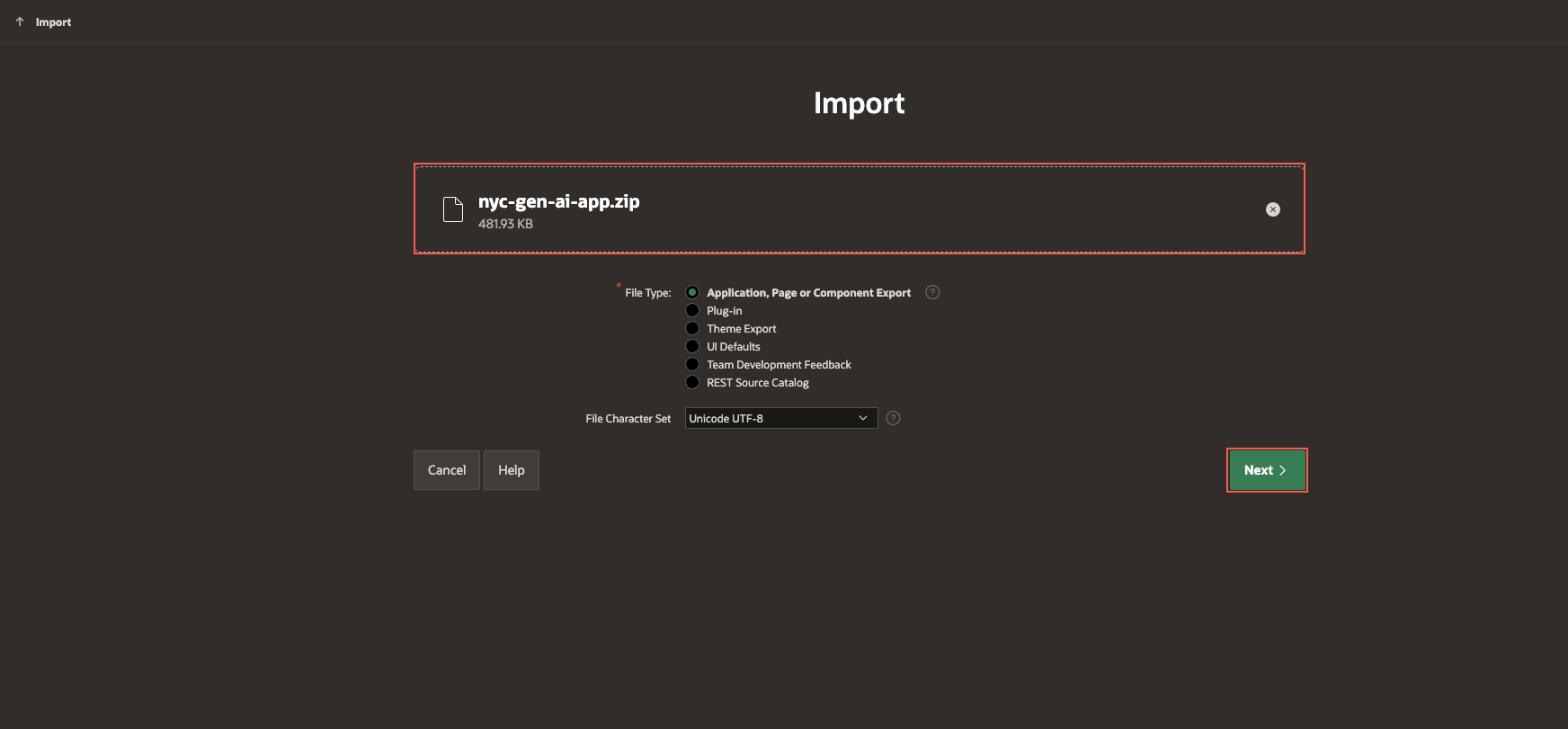

2. Drag and drop your downloaded zip file, then click Next.



3. Click Install Application.

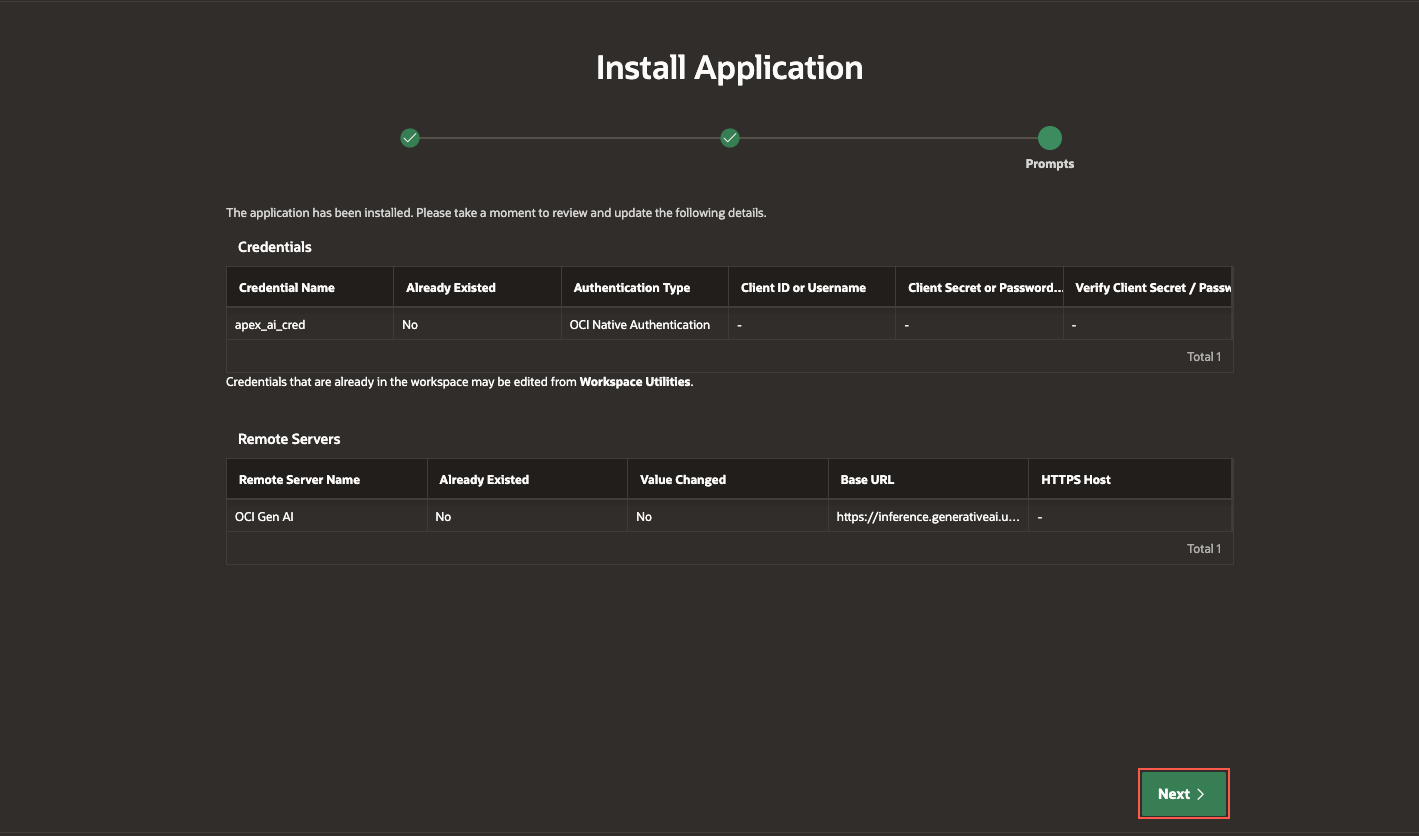

4. Click Next.

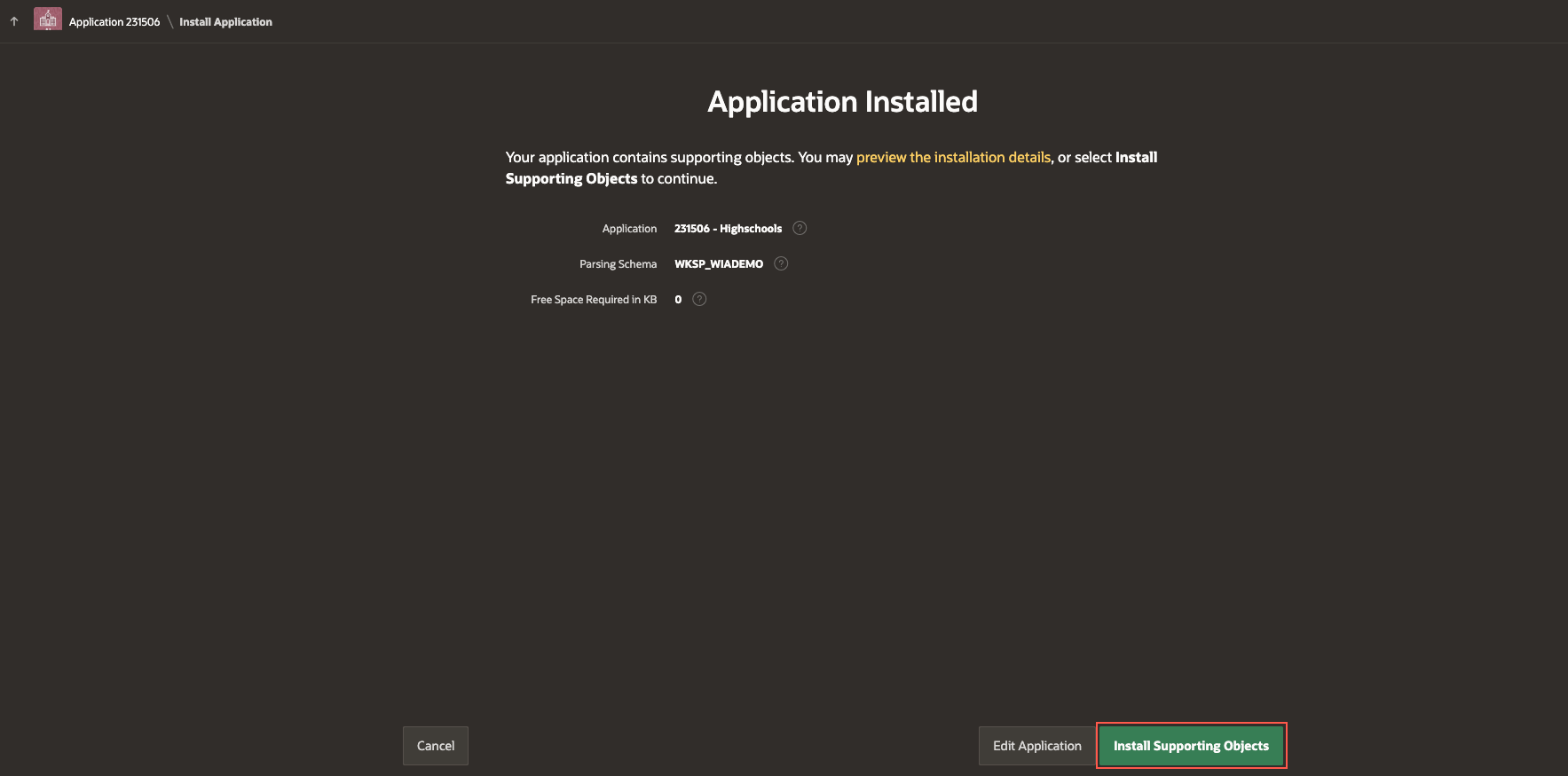

5. Click Install Supporting Objects.



Task 2: Update Web Credentials in Oracle APEX and Configure Generative AI

Web credentials are used to authenticate connection to external REST services, or REST Enabled SQL services from APEX.

Creating Web Credentials securely stores and encrypts authentication credentials for use by Oracle APEX components and APIs. Credentials cannot be retrieved back in clear text. Credentials are stored at the workspace level and therefore are visible to all applications.

To update the Web Credential in Oracle APEX:

1. You need access to an OCI API Key Pair. To generate an OCI Key pair, refer to Lab 3: Task 1 : Generate API keys using OCI Console

Skip this step if you already have the API key.

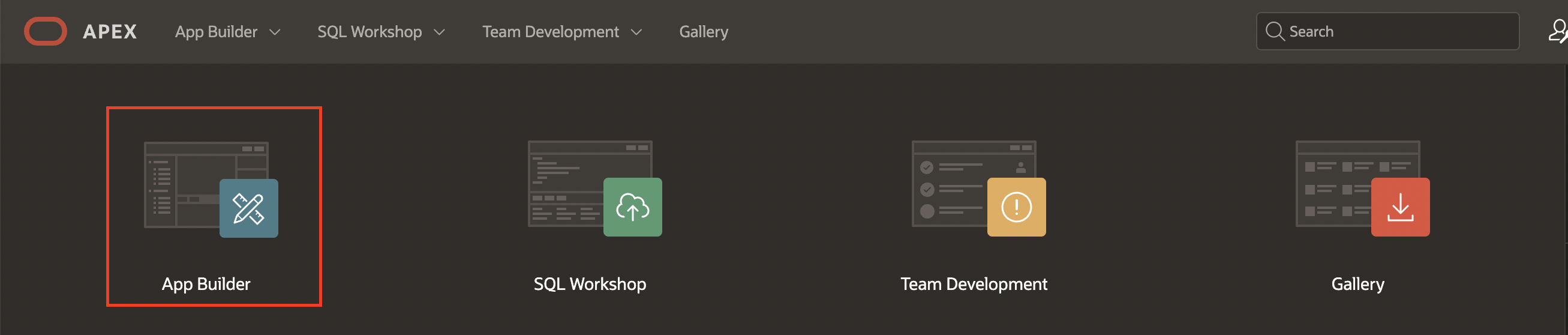

2. On the Workspace home page, click App Builder.

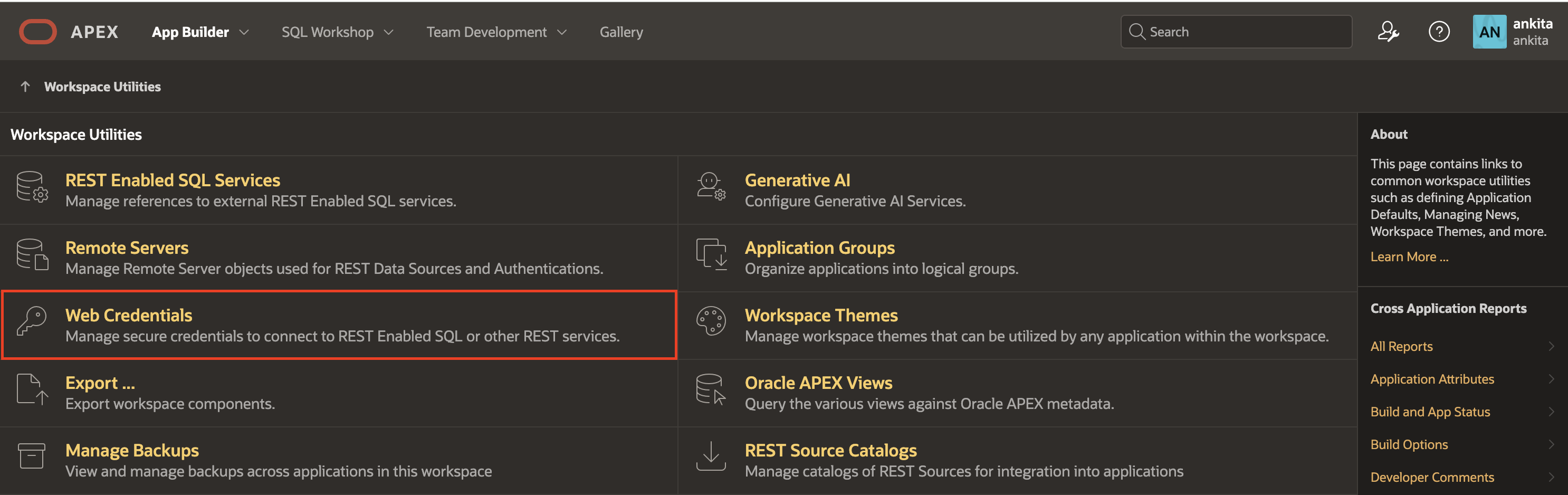

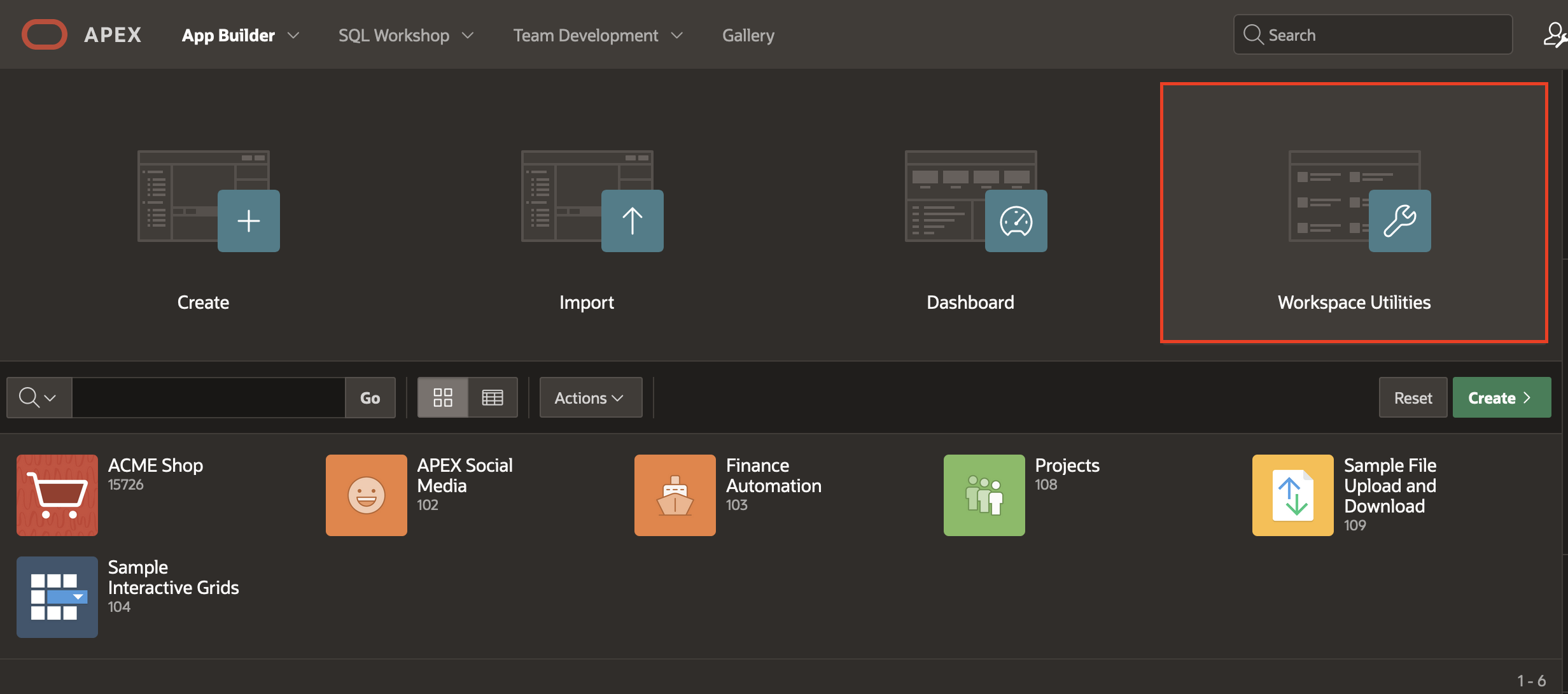

3. Click Workspace Utilities.



4. Select Web Credentials.

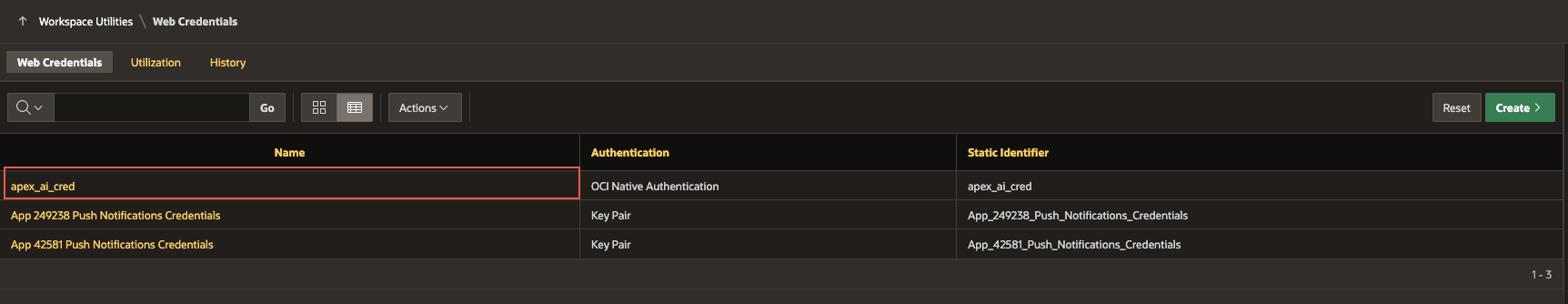

5. Click apex_ai_cred.

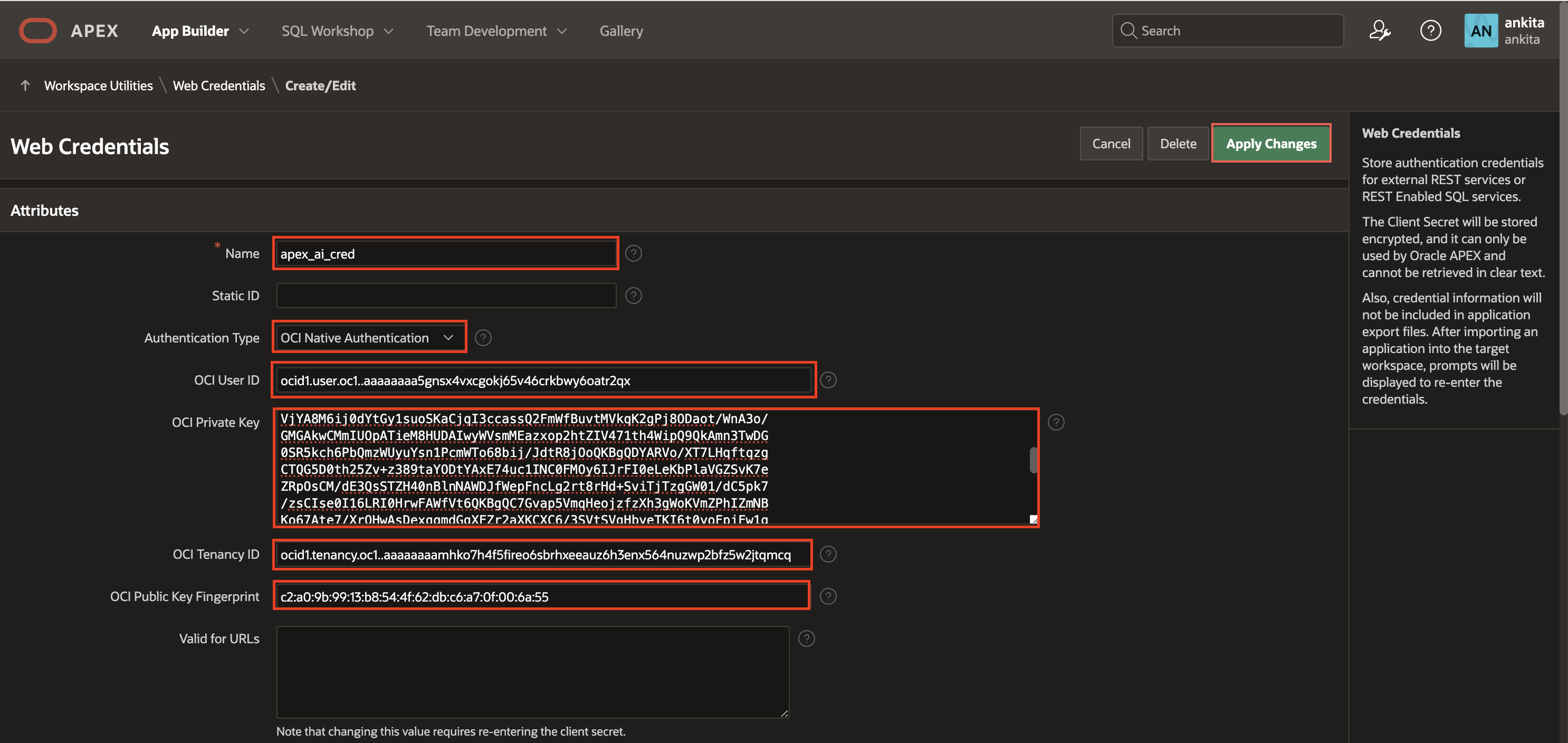

6. Enter the following details using the configuration file you copied while generating an API key in OCI Console.

   • Name: apex_ai_cred

   • Authentication Type: OCI Native Authentication

   • OCI User ID: Enter the OCID of the Oracle Cloud user Account. You can find the OCID in the Configuration File Preview generated during the API Key creation. Your OCI User ID looks similar to ocid1.user.oc1..aaaaaaaa******wj3v23yla

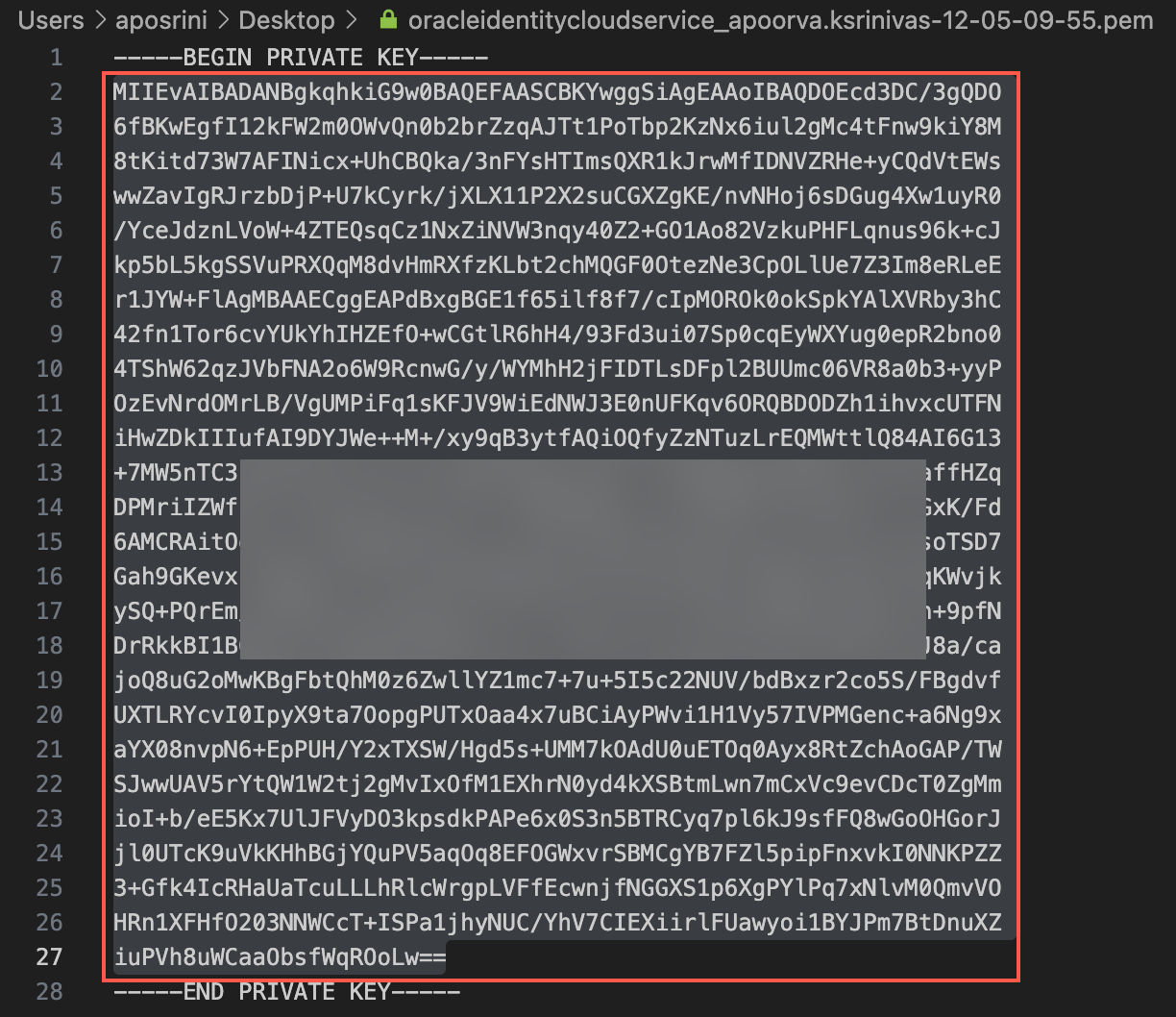

   • OCI Private Key: Open the private key (.pem file) downloaded in the previous task. Copy and paste the API Key.



   • OCI Tenancy ID: Enter the OCID for Tenancy. Your Tenancy ID looks similar to ocid1.tenancy.oc1..aaaaaaaaf7ush****cxx3qka

   • OCI Public Key Fingerprint: Enter the Fingerprint ID. Your Fingerprint ID looks similar to a8:8e:c2:8b:fe:****:ff:4d:40



7. Click Apply Changes.

To Enable Generative AI in Oracle APEX:

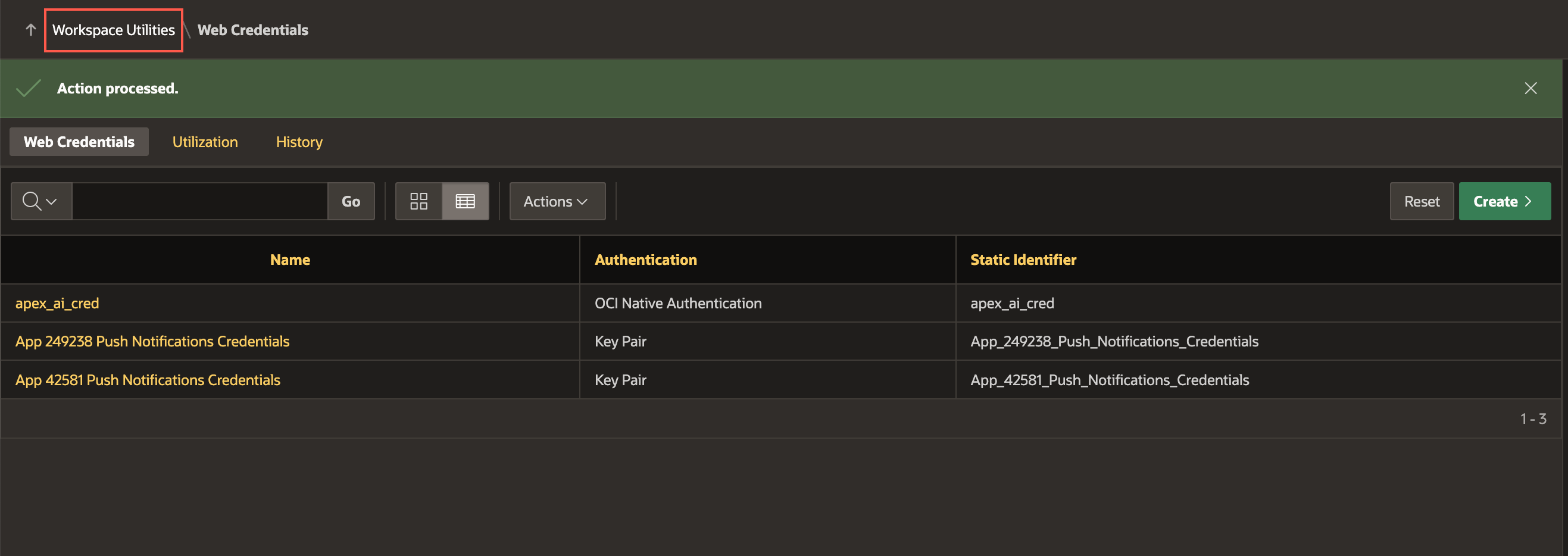

6. Click Workspace Utilities.

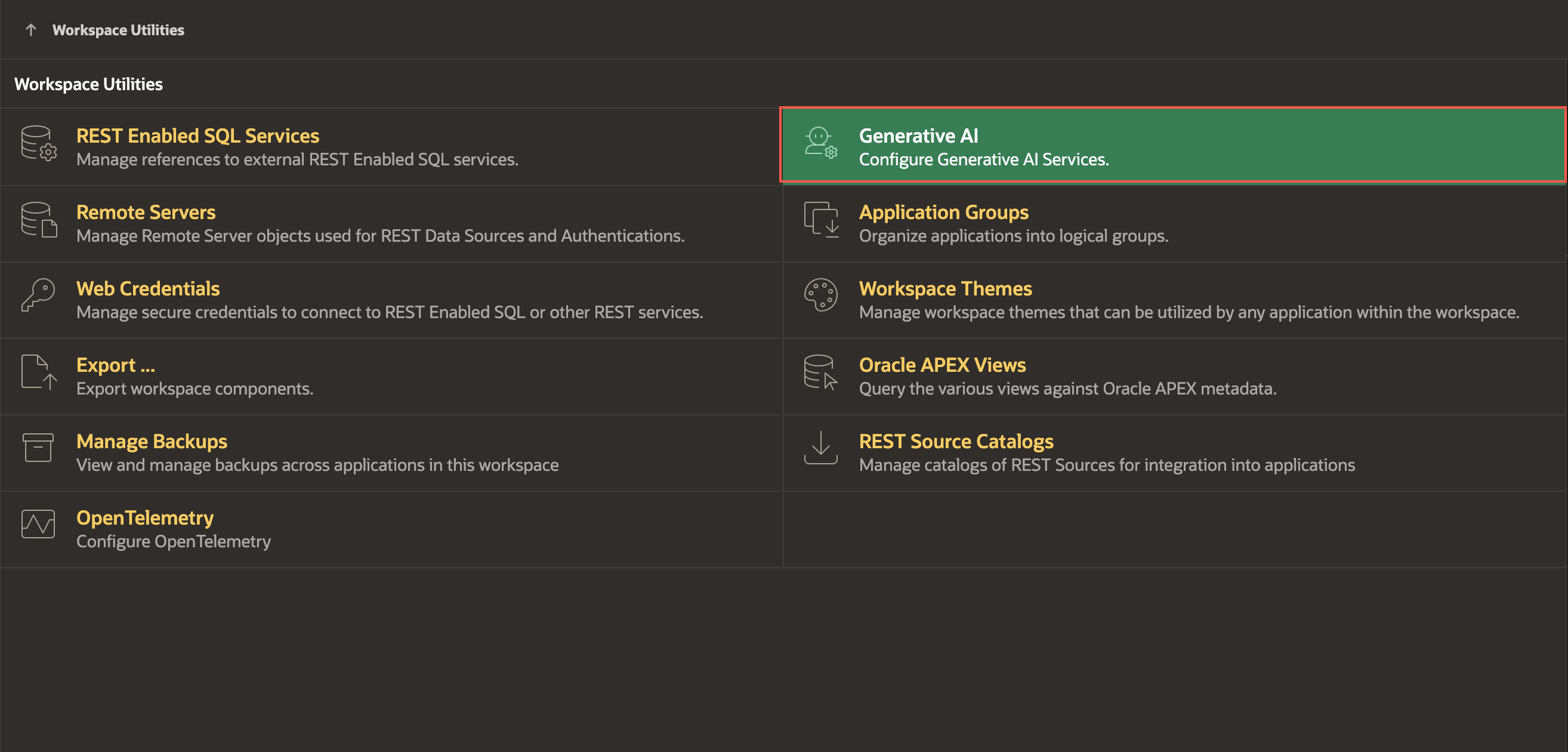

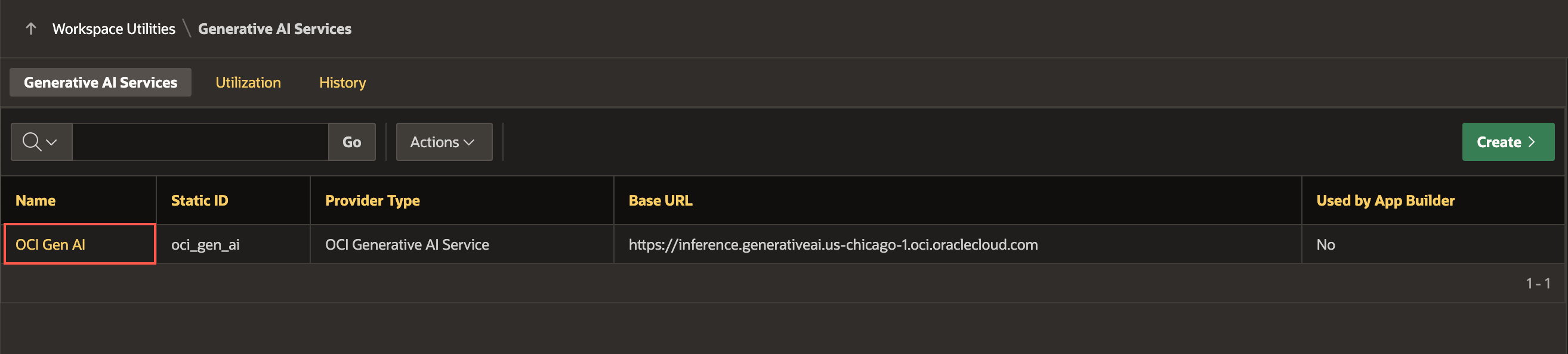

7. Click Generative AI.



8. Click OCI Gen AI.

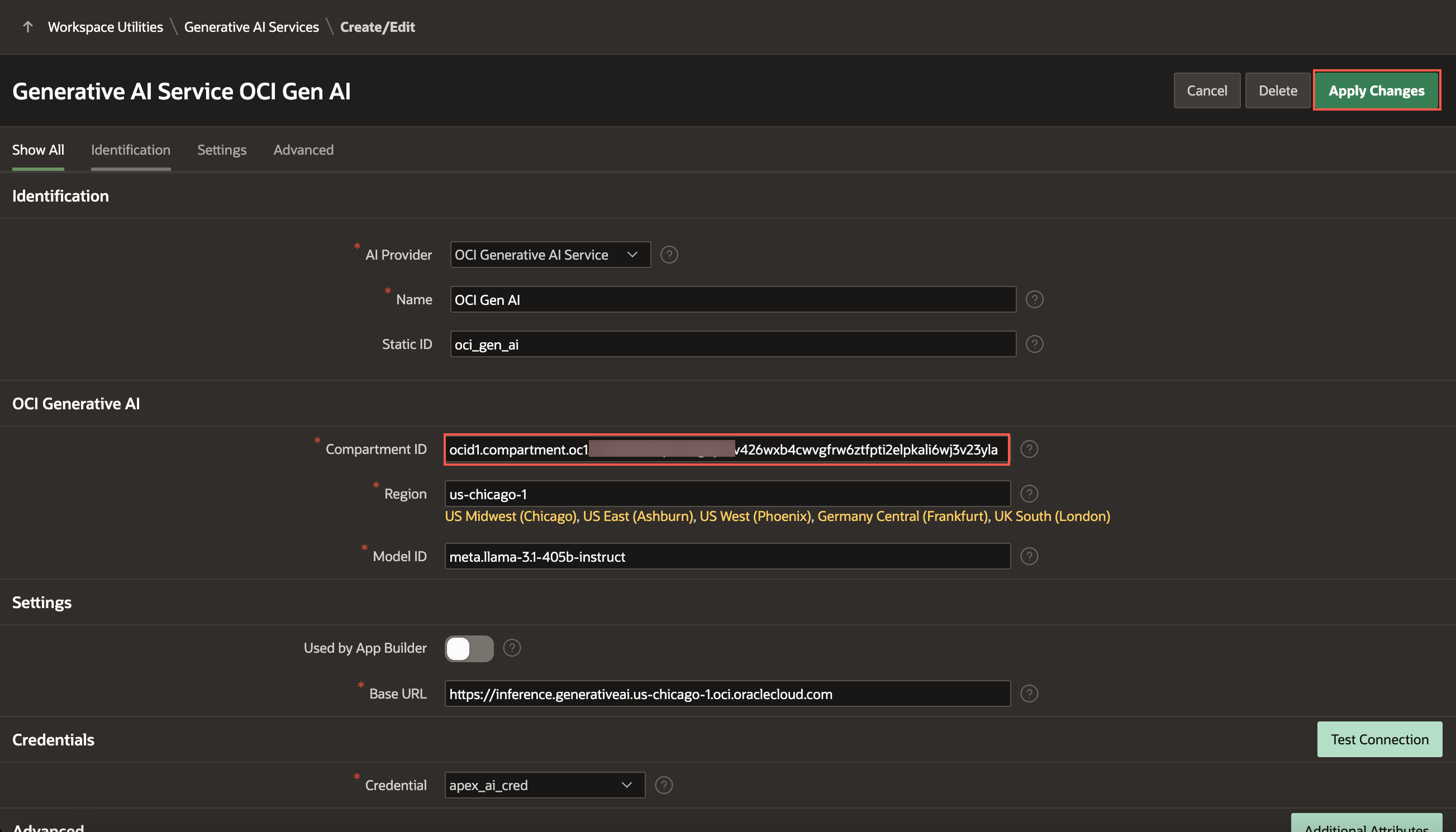

9. In the Compartment ID field, enter your Compartment ID and click Apply Changes. (Refer to the Documentation to fetch your Compartment ID.)



Task 3: Configure Vector Search using Search Configurations

1. To load the ONXX Model, refer to Lab 7: Task 2: Load the ONNX Model.

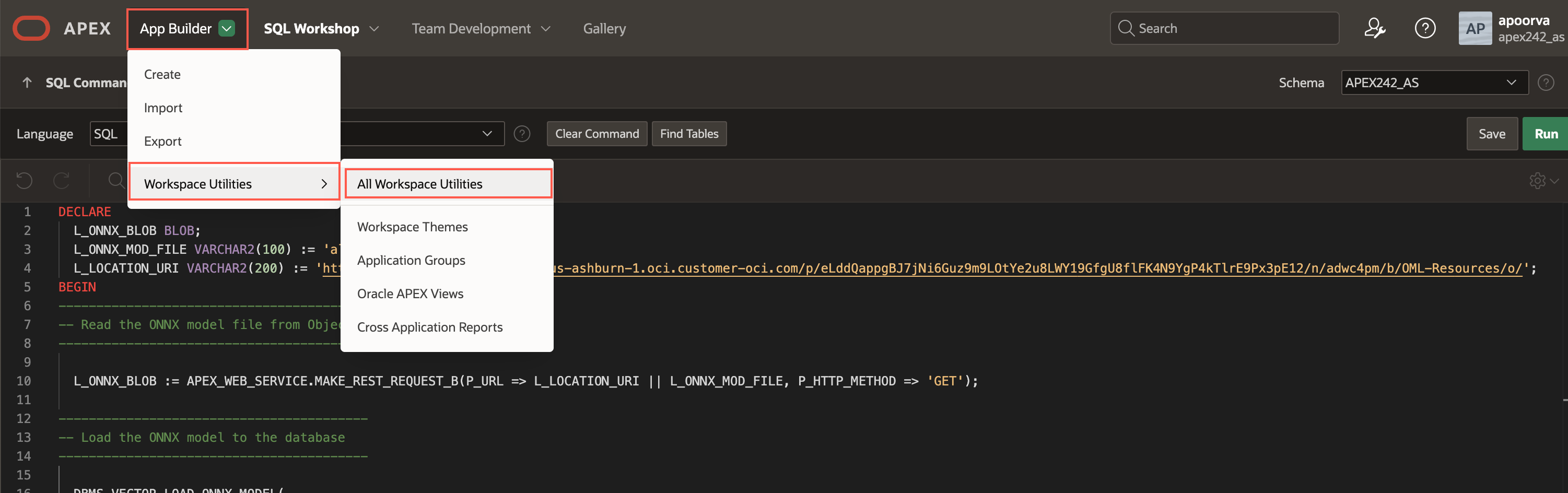

2. Expand App Builder, then select All Workspace Utilities and click Workspace Utilities.

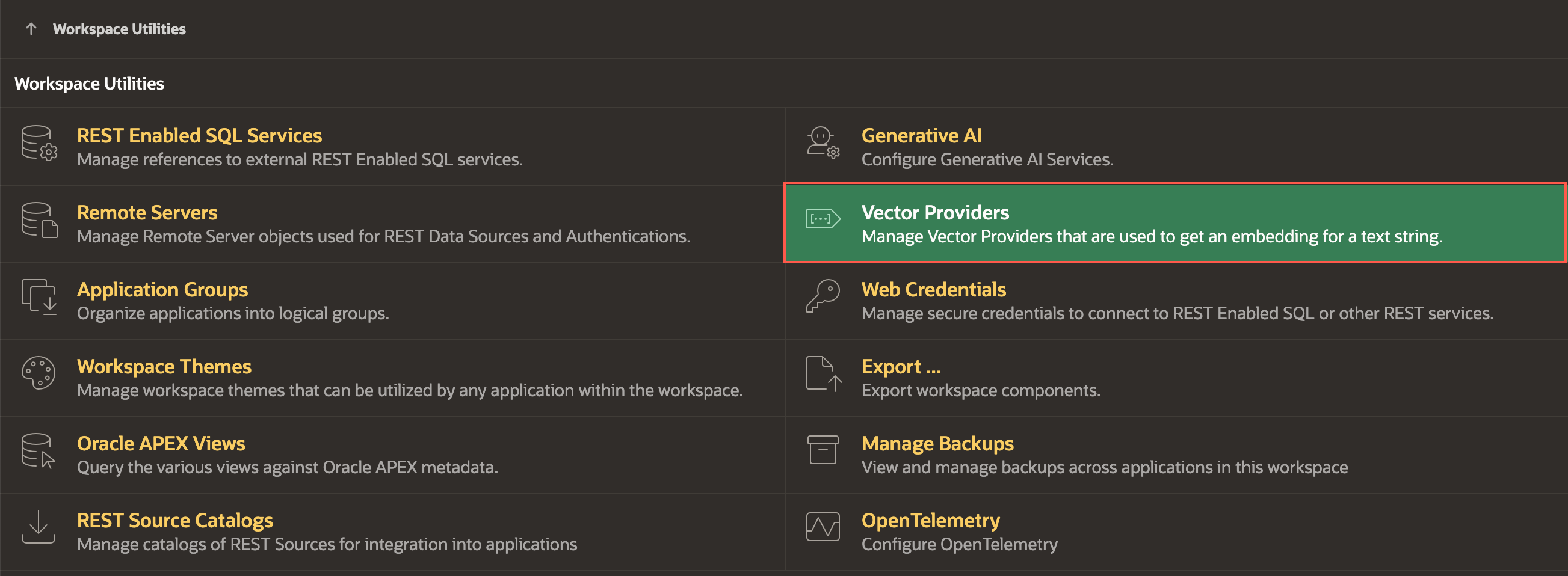

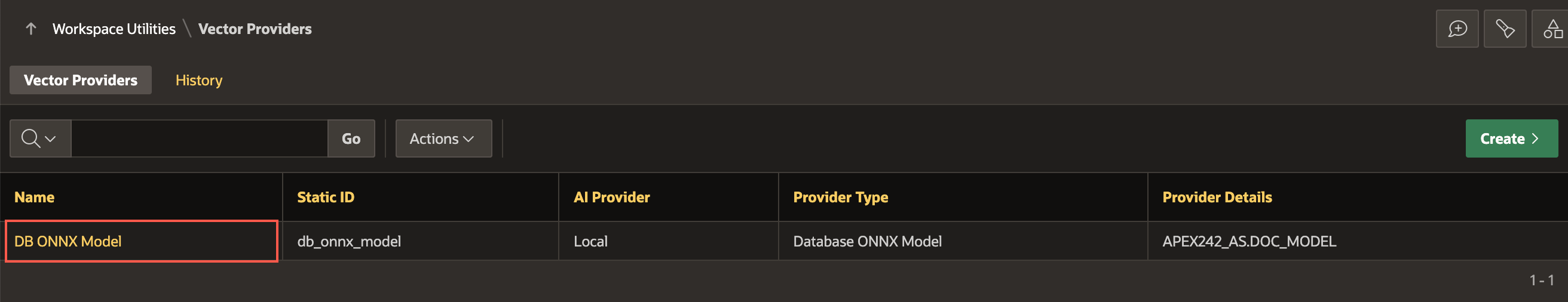

3. Click Vector Providers.

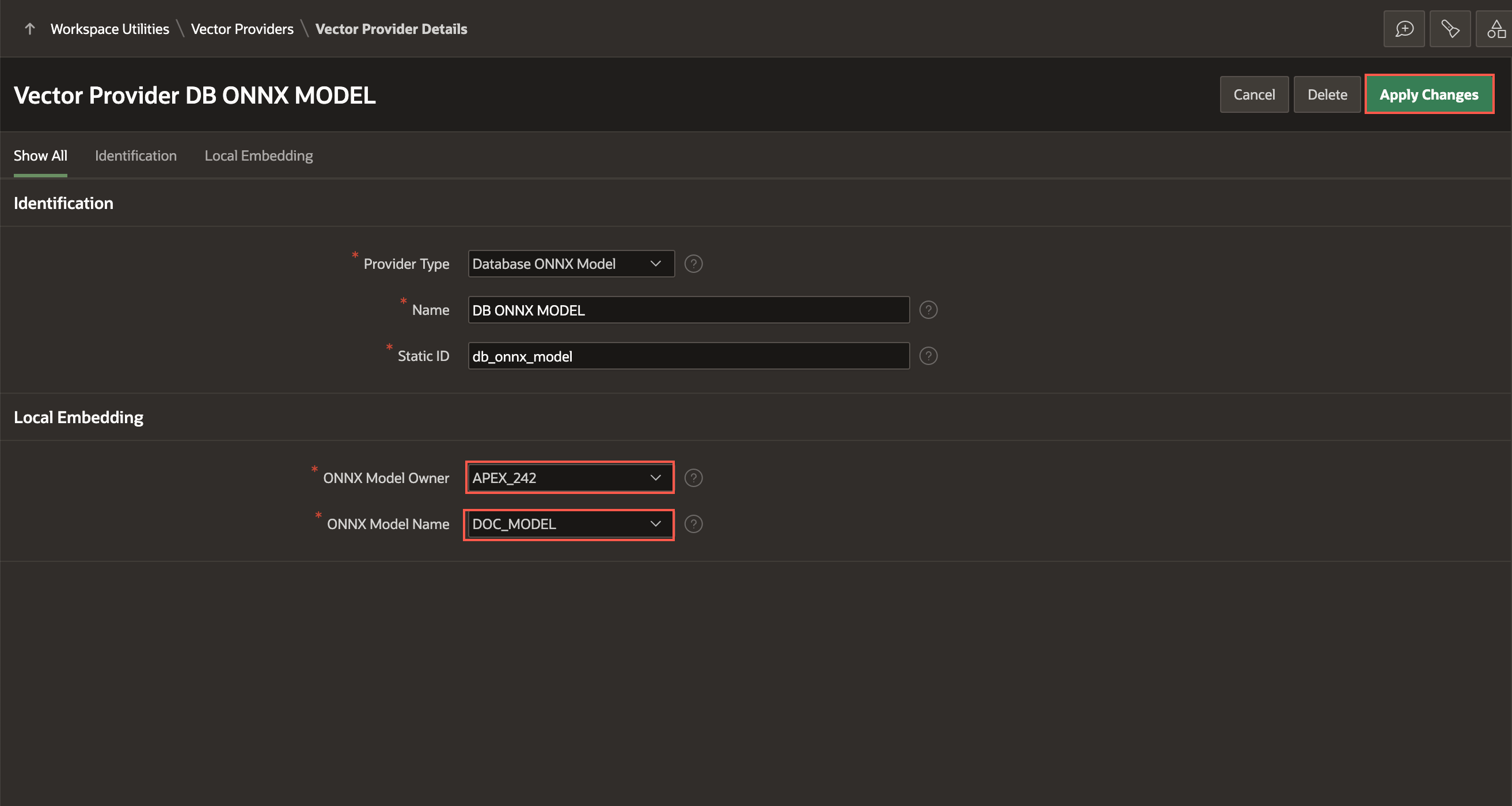

4. Click DB ONXX Model



5. Enter/select the following and click Apply Changes.

   • Under Local Embedding:

     • For ONNX Model Owner: Select your Parsing Schema

     • ONNX Model Name: DOC_MODEL

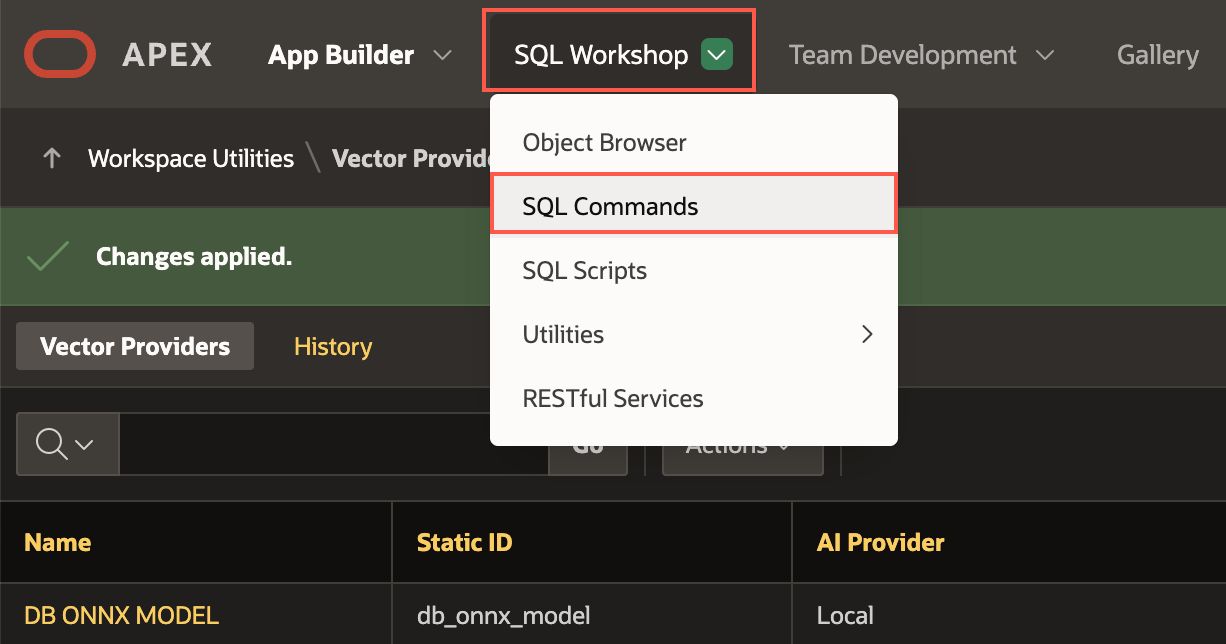

6. Expand SQL Workshop and select SQL Commands.

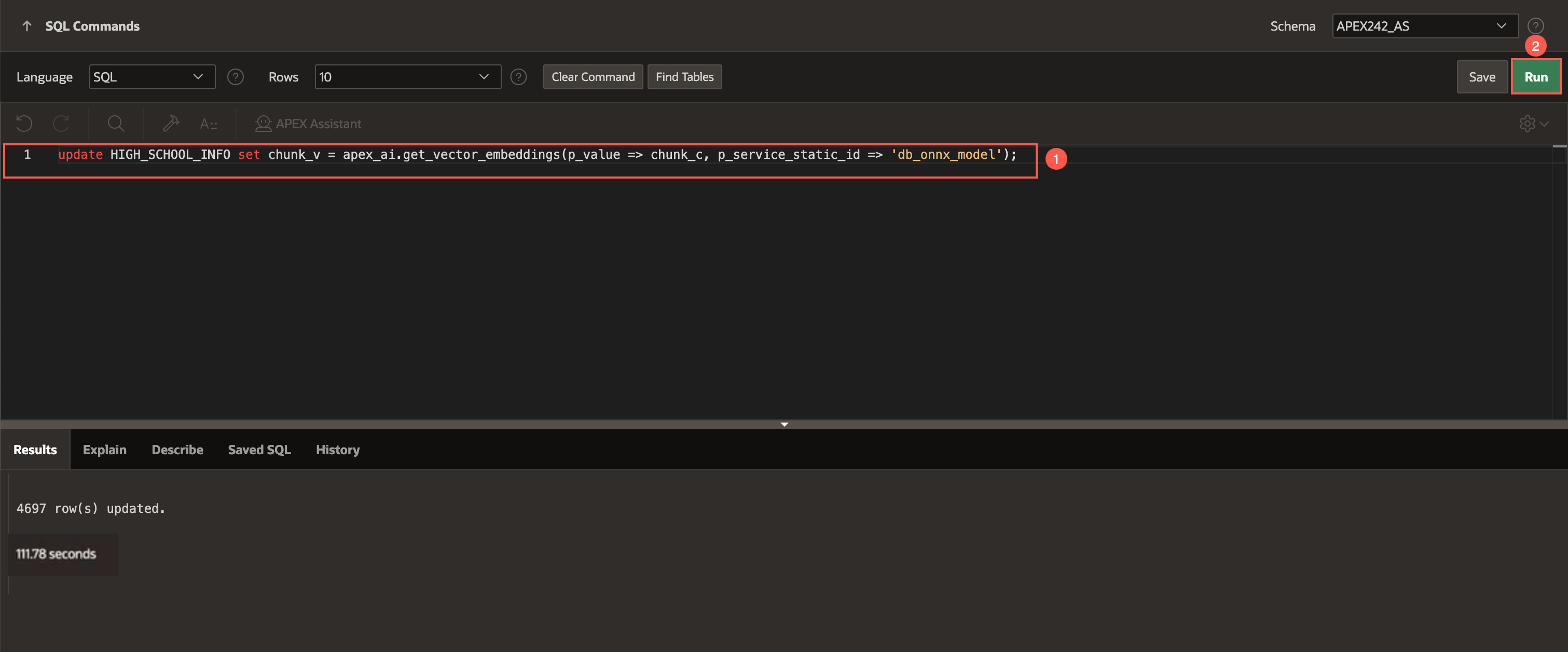

7. Copy and paste the SQL code below, then click Run.

   Copyupdate HIGH_SCHOOL_INFO set chunk_v = apex_ai.get_vector_embeddings(p_value => chunk_c, p_service_static_id => 'db_onnx_model');



8. All set. Now, run the application and see it in action! Follow Lab 6: Run the Application to run the app.
